M15733/28-0002

Overview

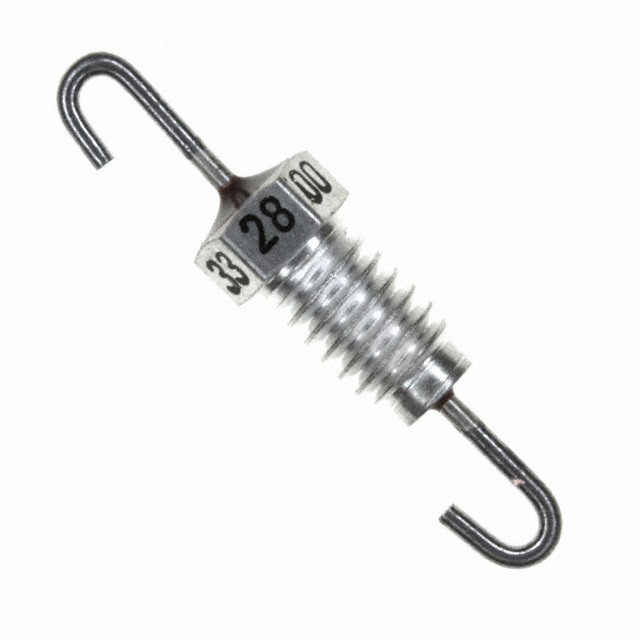

The M15733/28-0002 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes a Pi filter circuit topology and features a capacitance value of 1500 pF. The component is designed for chassis mounting applications with a voltage rating of 200 V. It operates within a temperature range from 0°C to +125°C. The unit employs an 8-32 UNC-2A thread size for secure installation.

Feature Summary

• Provides electromagnetic interference suppression through integrated LC (Pi) filtering architecture
• Designed for direct chassis mounting using threaded interface connections
• Capacitive filtering element rated for high-temperature operational environments

Applications

• Chassis-mounted electronic equipment requiring EMI mitigation
• Power distribution systems in aerospace or military hardware
• Industrial control panels subject to strict emission standards

Procurement Notes

Verify the specific manufacturer designation when sourcing, as Tusonix operates as a subsidiary of CTS Electronic Components. Confirm that the procurement channel accepts the non-RoHS status associated with this component series. Ensure that the ordering documentation explicitly references the full part number M15733/28-0002 to distinguish it from similar variants within the 4201 series. Cross-reference with official distributor catalogs to validate current availability and lead times prior to finalizing purchase orders.

Selection Notes

Select this component when a Pi filter configuration is required for chassis-mounted EMI suppression. The 1500 pF capacitance and 200 V rating define its electrical boundaries. Consider the 8-32 UNC-2A threading for mechanical compatibility with existing panel cutouts. Evaluate thermal requirements against the 125°C maximum operating limit. This part serves as a specialized solution for filtered power entry points where standard capacitors are insufficient.

Part Context

This component belongs to the 4201 series of EMI feedthrough filters produced by Tusonix. The series includes various capacitance values and thread sizes tailored for different shielding requirements. The M15733/28-0002 designation aligns with specific military or industrial specifications often referenced in defense electronics supply chains. It represents a standardized solution for high-reliability filtering applications.

Replacement Considerations

The M15733/28-0002 is functionally equivalent to the Tusonix part number 4201-503. Both components share identical electrical characteristics and physical mounting interfaces. When substituting, verify that the alternative source provides the same UNC-2A threading and 1500 pF capacitance rating to ensure seamless integration.
