M15733/33-0002

Overview

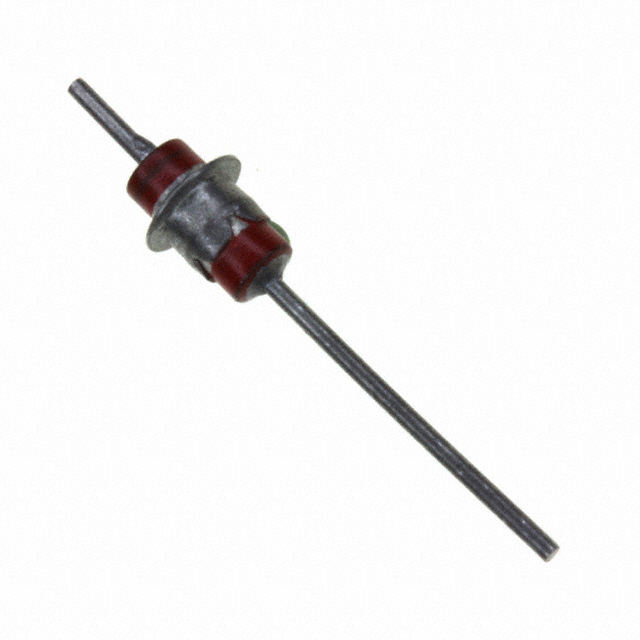

The M15733/33-0002 is a custom EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes an LC (Pi) filter circuit topology to suppress electromagnetic interference. The component features a capacitance value of 1750 pF. This part is designed for applications requiring specific filtering characteristics that deviate from standard catalog offerings.

Feature Summary

• Custom capacitance specification tailored for unique application requirements
• LC Pi filter topology for effective noise suppression
• EMI feedthrough design for signal line protection

Applications

• Wireless networking projects
• Embedded systems requiring stable operation
• Equipment needing integration with existing software tools

Procurement Notes

Verify the custom nature of this component before ordering. Confirm that the 1750 pF capacitance matches your specific design requirements, as it may not be interchangeable with standard values. Ensure compatibility with your system's impedance and frequency response needs.

Selection Notes

Select this part when standard fixed-capacitance filters do not meet specific EMI suppression criteria. The custom 1750 pF value suggests a specialized use case. Evaluate if the LC Pi topology provides sufficient attenuation for your target noise frequencies compared to alternative filter designs.

Part Context

This component belongs to the M15733 series of EMI feedthrough filters produced by Tusonix. The series includes various configurations, but this specific model is designated as a custom variant. It shares the general product family characteristics of high-performance ceramic filtering elements.

Replacement Considerations

Direct substitutes are limited due to the custom 1750 pF specification. Check for other M15733 series parts with similar capacitance or consult Tusonix for equivalent custom solutions. Standard catalog items may require circuit redesign.
