M15733/38-0004

Overview

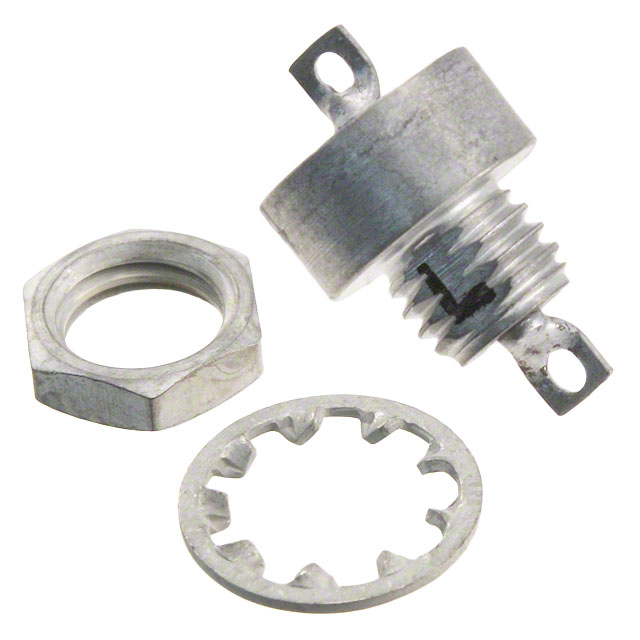

The M15733/38-0004 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes a Pi (LC) filter circuit topology to suppress electromagnetic interference. The component features a capacitance value of 1.4 uF and is rated for a maximum DC current of 50 A at 125°C. It is designed for chassis mounting applications.

Feature Summary

• Pi (LC) filter circuit topology
• Chassis mount design

Applications

• Electromagnetic interference suppression in electronic systems
• Power line filtering for chassis-mounted equipment

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, when sourcing this component. Confirm that the part number M15733/38-0004 corresponds to the specific 1.4 uF capacitance and 50 A current rating. Ensure compatibility with required chassis mounting standards before procurement.

Selection Notes

Select this component for applications requiring high current handling capabilities up to 50 A. The 1.4 uF capacitance provides significant filtering for low-frequency noise. Verify that the physical dimensions and mounting requirements align with the system chassis design constraints.

Part Context

This component belongs to the M15733 series of EMI feedthrough filters produced by Tusonix/CTS. These filters are engineered for robust performance in demanding environments, offering reliable attenuation of conducted emissions through their internal LC network structure.

Replacement Considerations

Cross-reference tools may identify parametrically similar parts. Verify that any substitute maintains the 1.4 uF capacitance, 50 A current rating, and Pi filter topology to ensure equivalent performance.
