M15733/38-0005

Overview

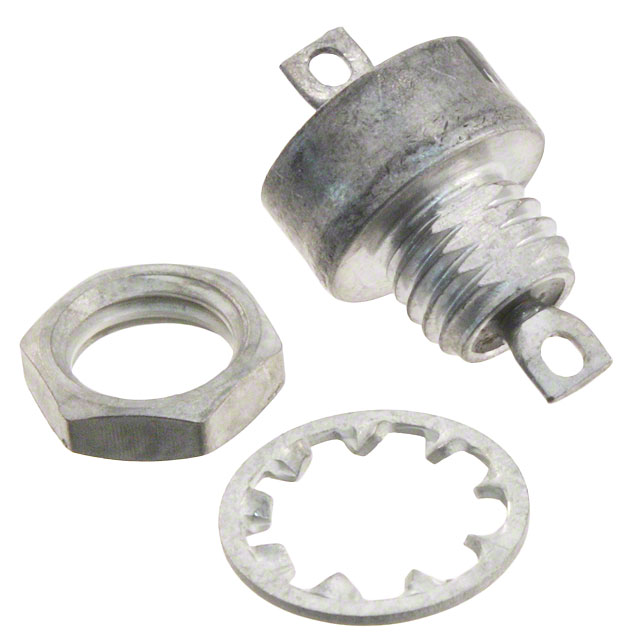

The M15733/38-0005 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the 4601 series and functions as an LC (Pi) filter designed for chassis mounting. The component features a capacitance of 1.4 microfarads and is rated for 50 volts at 125°C. It utilizes a press-in ceramic construction method, which allows for fast mechanical bonding without soldering. The package type is bulk, and it is classified under EMI Feedthrough Filters.

Feature Summary

• Provides electromagnetic interference suppression through LC Pi filter topology
• Utilizes press-in ceramic construction for solder-free mechanical bonding
• Designed for direct chassis mounting applications

Applications

• Chassis-mounted electronic filtering
• EMI suppression in power lines
• Industrial equipment signal conditioning

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, against official documentation. Confirm the specific capacitance value of 1.4uF and voltage rating of 50V@125C. Ensure the package style matches the required chassis mounting configuration. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a high-capacitance feedthrough filter is required for chassis installation. The press-in ceramic design offers advantages for applications where soldering is undesirable or impractical. Consider the 50V rating and 1.4uF capacitance to ensure compatibility with the target circuit's electrical requirements and noise profile.

Part Context

This part is part of the Tusonix line of EMI feedthrough filters, specifically within the 4601 series. These components are engineered for robust noise suppression in demanding environments. The use of ceramic materials and press-in technology distinguishes them from traditional soldered feedthrough capacitors, offering improved mechanical stability and installation speed.

Replacement Considerations

M15733/38-0005 is a military-style part number. Verify cross-reference availability with standard commercial equivalents if supply chain flexibility is needed. Ensure any substitute maintains the 1.4uF capacitance and 50V rating while supporting the same chassis mounting interface.
