Product Detailed Parameters
- Description：FILTER LC(PI) 1500PF CHASSISSIS
- Series：-
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：45dB @ 1GHz ~ 10GHz
- Resistance - Channel (Ohms)：-
- Values：C = 1500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：200V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing, 1 Turret Lead
- Size / Dimension：0.250" Dia x 0.588" L (6.35mm x 14.93mm)
- Height：-
- Current：10:00 AM
Download product information
Overview

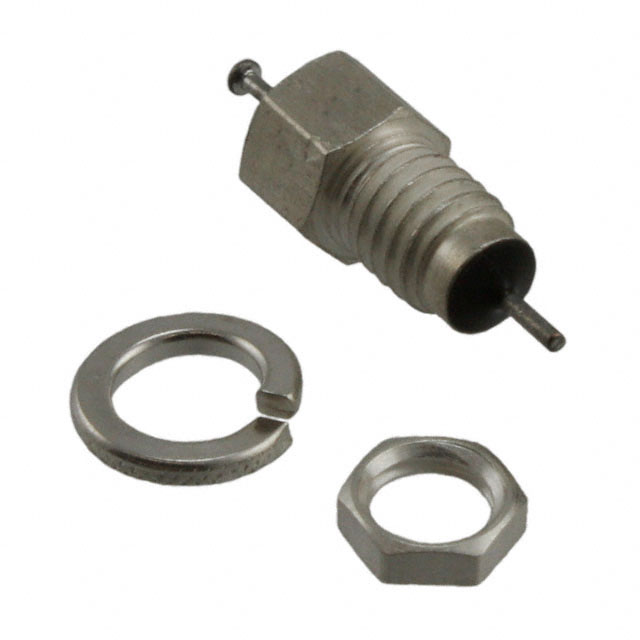

The M15733/43-0001 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the M15733 series and utilizes a Pi filter circuit topology. The component features a capacitance of 1500 pF and a voltage rating of 1500 Volts. It is designed for chassis mounting applications.
Feature Summary
- Provides electromagnetic interference suppression through integrated LC filtering
- Utilizes a Pi filter circuit topology for enhanced noise attenuation
- Designed for direct chassis mounting installation
Applications
- Chassis-mounted electronic equipment requiring EMI suppression
- Power line filtering in military or aerospace systems
- Signal integrity protection in sensitive instrumentation
Procurement Notes
Verify manufacturer authenticity as Tusonix is a subsidiary of CTS. Confirm RoHS compliance status as documentation indicates non-compliance for some variants. Check datasheet for specific environmental operating limits and ensure correct thread specifications match panel requirements before ordering.
Selection Notes
Select this component when high-voltage EMI filtration is required for chassis-mounted applications. The 1500 pF capacitance offers specific attenuation characteristics suitable for certain frequency ranges. Ensure the 1500 V rating aligns with system voltage requirements and verify mechanical fit for the intended mounting surface.
Part Context
This part is part of the M15733 series of EMI feedthrough filters produced by Tusonix. These components are typically used in environments requiring robust noise suppression. The series includes various capacitance and voltage ratings to suit different power and signal line filtering needs across industrial and defense sectors.
Replacement Considerations
Cross-reference with M15733/43-0002 or M15733/43-0003 if different capacitance values are needed. Verify that any substitute maintains the same Pi filter topology and chassis mounting interface to ensure compatibility with existing panel designs.
