Product Detailed Parameters
- Description：FILTER LC(PI) 1500PF CHASSISSIS
- Series：-
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：20dB @ 100MHz
- Resistance - Channel (Ohms)：-
- Values：C = 1500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：125V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing
- Size / Dimension：0.188" Dia x 0.200" L (4.78mm x 5.08mm)
- Height：-
- Current：15 A
Download product information
Overview

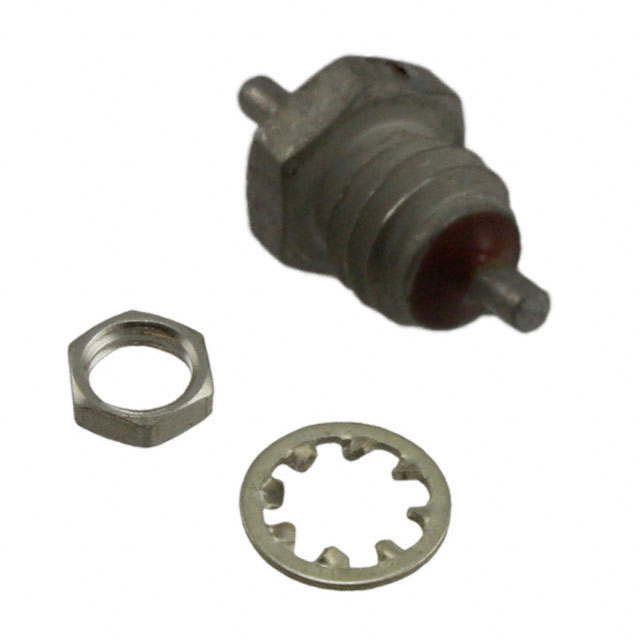

The M15733/44-0002 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the MIL-DTL-15733 series and features an LC(PI) circuit topology. The component has a capacitance value of 1500 pF and is designed for chassis mounting applications.
Feature Summary
- Provides electromagnetic interference suppression through integrated LC(PI) filtering architecture
- Designed for direct chassis mounting to ensure effective grounding and shielding
Applications
- Military and aerospace electronic systems requiring MIL-DTL-15733 compliance
- Chassis-mounted power line filtering in sensitive equipment
- RFI suppression in communication and navigation subsystems
Procurement Notes
Verify that the supplier provides genuine Tusonix or CTS components with appropriate documentation. Confirm the part number matches M15733/44-0002 exactly, as cross-references may exist. Check for RoHS compliance status if required by your specific application standards, noting that military specifications sometimes differ from commercial environmental directives.
Selection Notes
Select this component when a 1500 pF capacitance value is required for high-frequency noise attenuation. Ensure the chassis mounting style fits your enclosure design constraints. Verify that the current and voltage ratings of the broader 4205 series meet your system's operational requirements before finalizing the selection.
Part Context
This part is part of the MIL-DTL-15733 family of feedthrough capacitors and filters produced by Tusonix. These components are widely used in defense and aerospace industries due to their reliability and standardized form factors. The 4205 series typically includes various capacitance values within this mounting configuration.
Replacement Considerations
Direct substitutes include parts listed in the Tusonix Cross Reference Tool. Equivalent MIL-spec parts must match the 1500 pF capacitance and chassis mount interface. Verify pinout and mechanical dimensions before substitution.
