Product Detailed Parameters
- Description：FILTER LC 0.68UF CHASSIS MOUNT
- Series：-
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Tray
- Type：Low Pass
- Filter Order：2nd
- Technology：LC
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：70dB @ 100MHz ~ 10GHz
- Resistance - Channel (Ohms)：-
- Values：C = 0.68µF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：50V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing
- Size / Dimension：-
- Height：-
- Current：15 A
Download product information
Overview

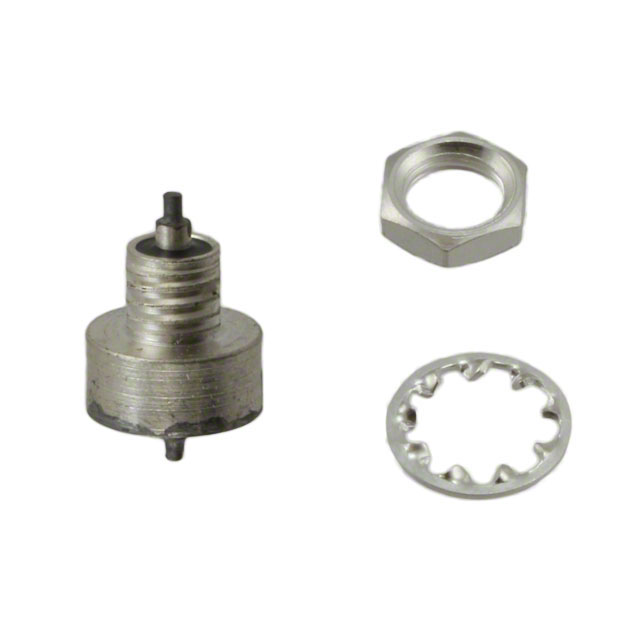

The M15733/49-0001 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a Pi filter circuit topology and utilizes chassis mounting for installation. The component has a capacitance value of 0.68 uF and is designed for high-performance electromagnetic interference suppression in electronic systems.
Feature Summary
- Provides effective attenuation of electromagnetic interference through integrated LC filtering stages
- Utilizes a robust chassis mount design for secure mechanical integration into equipment enclosures
Applications
- Electromagnetic interference suppression in electronic assemblies
- Power line filtering in industrial control systems
- Signal integrity protection in sensitive communication equipment
Procurement Notes
Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, to ensure authenticity. Confirm the part number M15733/49-0001 matches the required 0.68 uF capacitance and Pi filter configuration. Check for RoHS compliance status if environmental regulations apply to your specific deployment scenario.
Selection Notes
Select this component when a 0.68 uF capacitance value is required for EMI mitigation. Ensure the chassis mounting style aligns with the available space and mechanical constraints of the target enclosure. Verify that the Pi filter topology meets the specific noise reduction requirements of the application circuit.
Part Context
This component belongs to the M15733 series of feedthrough filters produced by Tusonix. These filters are engineered for high reliability in demanding environments. The series offers various capacitance values and mounting options to suit different system architectures and interference profiles.
Replacement Considerations
Cross-reference with other M15733 series variants from Tusonix or CTS for alternative capacitance values. Ensure any substitute maintains the same chassis mounting interface and Pi filter topology to guarantee mechanical and electrical compatibility.
