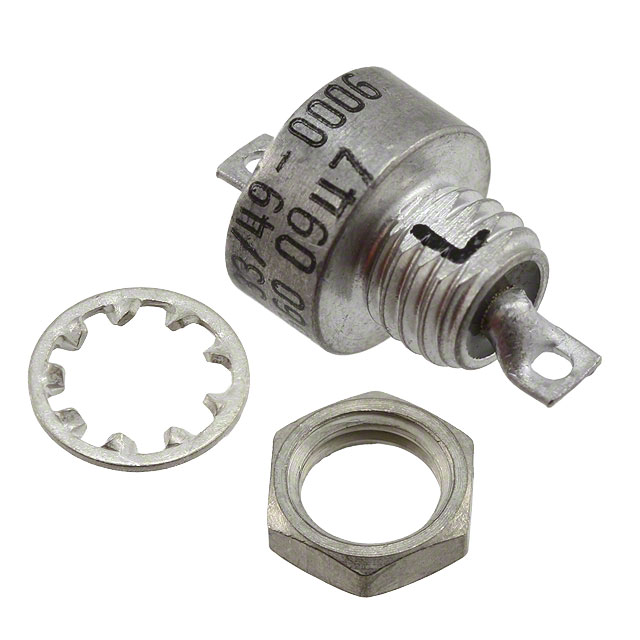

M15733/49-0006

$34.96

Description：FILTER LC 1.2UF/2.4UF CHASSIS
Series：-
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Tray

SKU:427c5472db23 Category: EMI/RFI Filters (LC, RC Networks) Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC 1.2UF/2.4UF CHASSIS
Series：-
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Tray
Type：Low Pass
Filter Order：2nd
Technology：LC
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：70dB @ 1GHz ~ 10GHz
Resistance - Channel (Ohms)：-
Values：C = 1.2µF, 2.4µF
ESD Protection：No
Operating Temperature：-55°C ~ 125°C
Applications：-
Voltage - Rated：50V
Mounting Type：Chassis Mount
Package / Case：Axial, Bushing - 2 Solder Eyelets
Size / Dimension：0.385" Dia x 0.357" L (9.78mm x 9.07mm)
Height：-
Current：15 A

Download product information

M15733/49-0006

Overview

The M15733/49-0006 is an LC filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. This component features two solder eyelets for chassis mounting and is designed as a data line filter. It provides filtering capabilities with capacitance values of 1.2 µF and 2.4 µF.

Feature Summary

Designed specifically for data line filtering applications
Features axial construction with two solder eyelets
Intended for secure chassis mounting

Applications

Data line filtering in electronic systems
Chassis-mounted EMC protection setups

Procurement Notes

Verify the manufacturer designation carefully, as sources indicate Tusonix (a CTS subsidiary) produces this part, while other distributors may list Spectrum Control or API Technologies under the same military-style part number. Confirm the specific capacitance values and mounting style match your design requirements before ordering.

Selection Notes

Select this component when a chassis-mountable LC filter with solder eyelets is required for data lines. Ensure the available capacitance values of 1.2 µF and 2.4 µF align with your circuit's filtering needs. Verify compatibility with your chassis mounting hardware.

Part Context

This part belongs to the family of EMI feedthrough filters and LC filters produced by Tusonix. These components are typically used in environments requiring robust electromagnetic interference suppression for sensitive data transmission lines.

Replacement Considerations

Cross-reference with M15733/49-0006 listings from Spectrum Control or API Technologies if sourcing from alternative distributors, ensuring electrical specifications remain identical.
