M15733/51-0002

Description：FILTER LC(PI) 0.022UF CUSTOM
Series：-
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:be4d34453eaf Category: EMI/RFI Filters (LC, RC Networks) Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC(PI) 0.022UF CUSTOM
Series：-
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Type：Low Pass
Filter Order：3rd
Technology：LC (Pi)
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：70dB @ 100MHz ~ 10GHz
Resistance - Channel (Ohms)：-
Values：C = 0.022µF
ESD Protection：No
Operating Temperature：-55°C ~ 125°C
Applications：-
Voltage - Rated：70V
Mounting Type：Custom
Package / Case：Axial, Eyelet - 1 Turret Lead
Size / Dimension：0.203" Dia x 0.390" L (5.16mm x 9.91mm)
Height：-
Current：10:00 AM

Download product information

M15733/51-0002

Overview

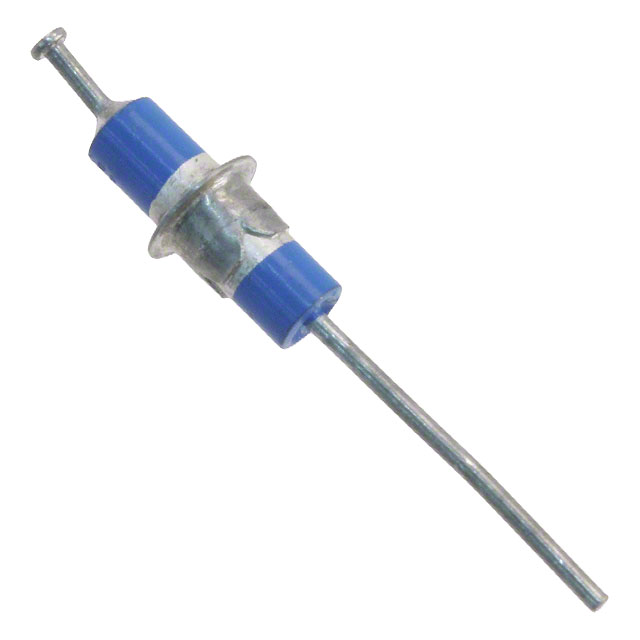

The M15733/51-0002 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 22000 pF (0.022 µF) and supports a maximum DC current of 10 A. The component utilizes an LC Pi-type low-pass circuit topology for effective noise suppression. It is housed in an axial package with a single turret lead eyelet design. Physical dimensions are specified as 0.203 inches in diameter by 0.390 inches in length.

Feature Summary

Provides third-order low-pass filtering characteristics to attenuate electromagnetic interference.
Utilizes an LC Pi network configuration for enhanced signal integrity.
Features an axial mounting style with a single turret lead eyelet for secure installation.

Applications

Power supply input filtering
Electronic equipment chassis penetration points
Signal line noise suppression

Procurement Notes

Verify the specific datasheet version for the M15733/51-0002 to confirm voltage ratings and temperature coefficients not explicitly listed in general summaries. Ensure compatibility with existing panel cutouts given the fixed physical dimensions. Confirm RoHS status requirements against project specifications before finalizing procurement orders.

Selection Notes

Select this component when high capacitance values are required for low-frequency noise attenuation. The 10 A current rating suits moderate power applications. Verify that the axial eyelet mounting method aligns with the mechanical assembly constraints of the target enclosure or PCB design.

Part Context

This part belongs to the M15733 series of EMI feedthrough filters produced by Tusonix. These components are designed for direct mounting through metal panels to provide shielding continuity while filtering conducted emissions. The series offers various capacitance and current ratings to suit different electronic system requirements.

Replacement Considerations

Cross-reference with other M15733 series variants such as M15733/51-0001 if lower capacitance is acceptable. Verify that any substitute maintains the same axial eyelet form factor and 10 A current handling capability to ensure mechanical and electrical compatibility.
