Product Detailed Parameters
- Description：FILTER LC(PI) 1500PF CHASSISSIS
- Series：-
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：70dB @ 1GHz ~ 10GHz
- Resistance - Channel (Ohms)：-
- Values：C = 1500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：200V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing, 1 Turret Lead
- Size / Dimension：0.250" Dia x 0.470" L (6.35mm x 11.95mm)
- Height：-
- Current：10:00 AM
Download product information
Overview

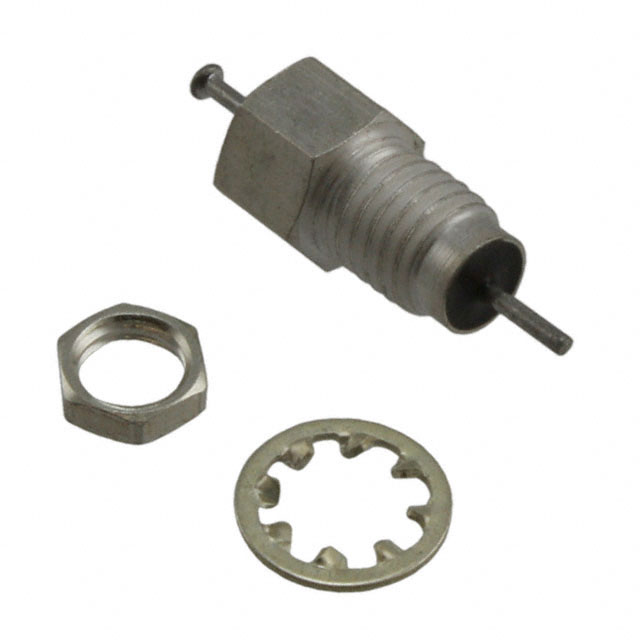

The M15733/61-0002 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the M15733 series and functions as an UNF-2A EMI Pi Filter. The component is designed for chassis mounting applications requiring electromagnetic interference suppression in electronic circuits.
Feature Summary
- Provides effective attenuation of electromagnetic interference through integrated pi-filter topology
- Features a threaded UNF-2A interface for secure mechanical installation
- Designed for direct chassis mounting to ensure proper grounding and shielding
Applications
- Chassis-mounted electronic equipment requiring EMI suppression
- Power supply input filtering in industrial systems
- Signal line protection in sensitive electronic assemblies
Procurement Notes
Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, against official documentation. Confirm the specific M15733/61-0002 part number matches the required UNF-2A thread size and pi-filter configuration. Ensure compliance with relevant environmental regulations if RoHS status is critical for the application.
Selection Notes
Select this component when a dedicated EMI feedthrough filter with UNF-2A threading is required. Consider the pi-filter topology for superior high-frequency noise rejection compared to simple capacitors. Verify that the physical dimensions and mounting requirements align with the chassis design constraints.
Part Context
This component is part of the M15733 series of EMI feedthrough filters produced by Tusonix. These filters are engineered for robust performance in demanding environments, offering reliable signal integrity and power line purification through certified feedthrough capacitor technology.
Replacement Considerations
Cross-reference tools indicate parametrically similar parts within the M15733 family. Verify thread compatibility and capacitance values before substituting with other M15733 variants or equivalent feedthrough filters from other manufacturers.
