Overview

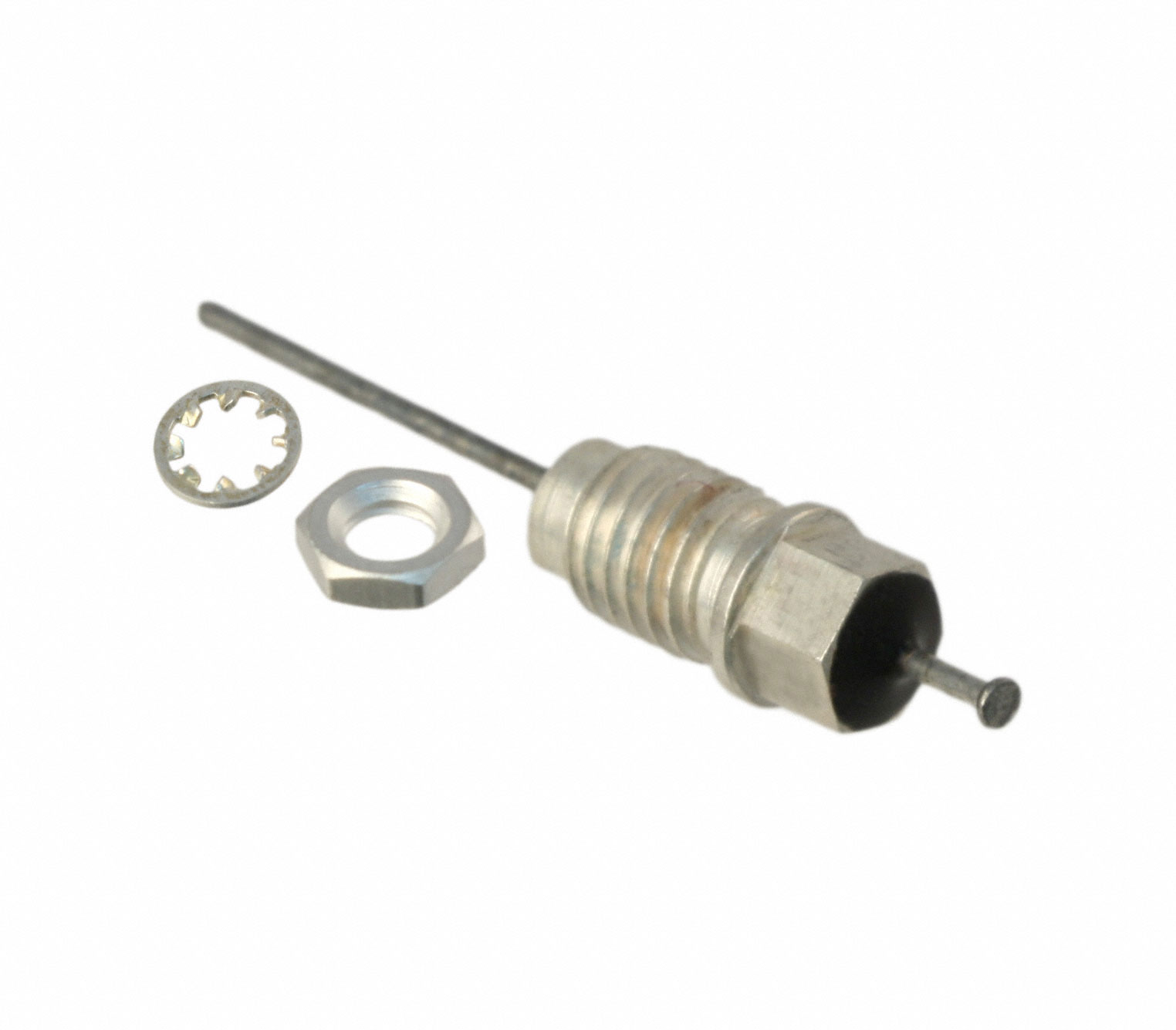

M15733/61-0007 is a chassis-mount EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes an LC (Pi) filter topology to suppress electromagnetic interference in electronic circuits. The component features a capacitance value of 5000 pF and is designed for direct mounting onto equipment chassis panels. This configuration provides effective noise attenuation for sensitive signal lines while maintaining structural integrity through its threaded mounting interface.

Feature Summary

• LC Pi filter topology for enhanced noise suppression
• Chassis-mount design for secure panel installation
• High capacitance value for low-frequency filtering

Applications

• Military communication systems
• Avionics equipment
• Radar signal processing units

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS, when sourcing this specific military-grade part number. Confirm that the required datasheet corresponds to the M15733 series specifications. Ensure compatibility with standard MIL-DTL-55342 mounting hardware if integration into existing enclosures is planned. Cross-reference with equivalent commercial parts only if electrical parameters match exactly.

Selection Notes

Select this component when high-capacitance filtering is required for chassis-mounted applications. The 5000 pF rating makes it suitable for lower frequency noise suppression compared to smaller capacitor variants. Consider the physical dimensions and thread requirements for panel cutouts during the mechanical design phase to ensure proper fit within the system enclosure.

Part Context

This part belongs to the M15733 series of feedthrough filters produced by Tusonix. These components are widely used in defense and aerospace industries due to their reliability under harsh environmental conditions. The series offers various capacitance values and mounting styles to meet diverse EMI mitigation needs across different electronic subsystems.

Replacement Considerations

Equivalent parts include M15733/61-0006 and M15733/61-0008 from the same manufacturer family. Verify capacitance and voltage ratings before substitution to ensure circuit performance remains unaffected.
