M15733/61-0008

Overview

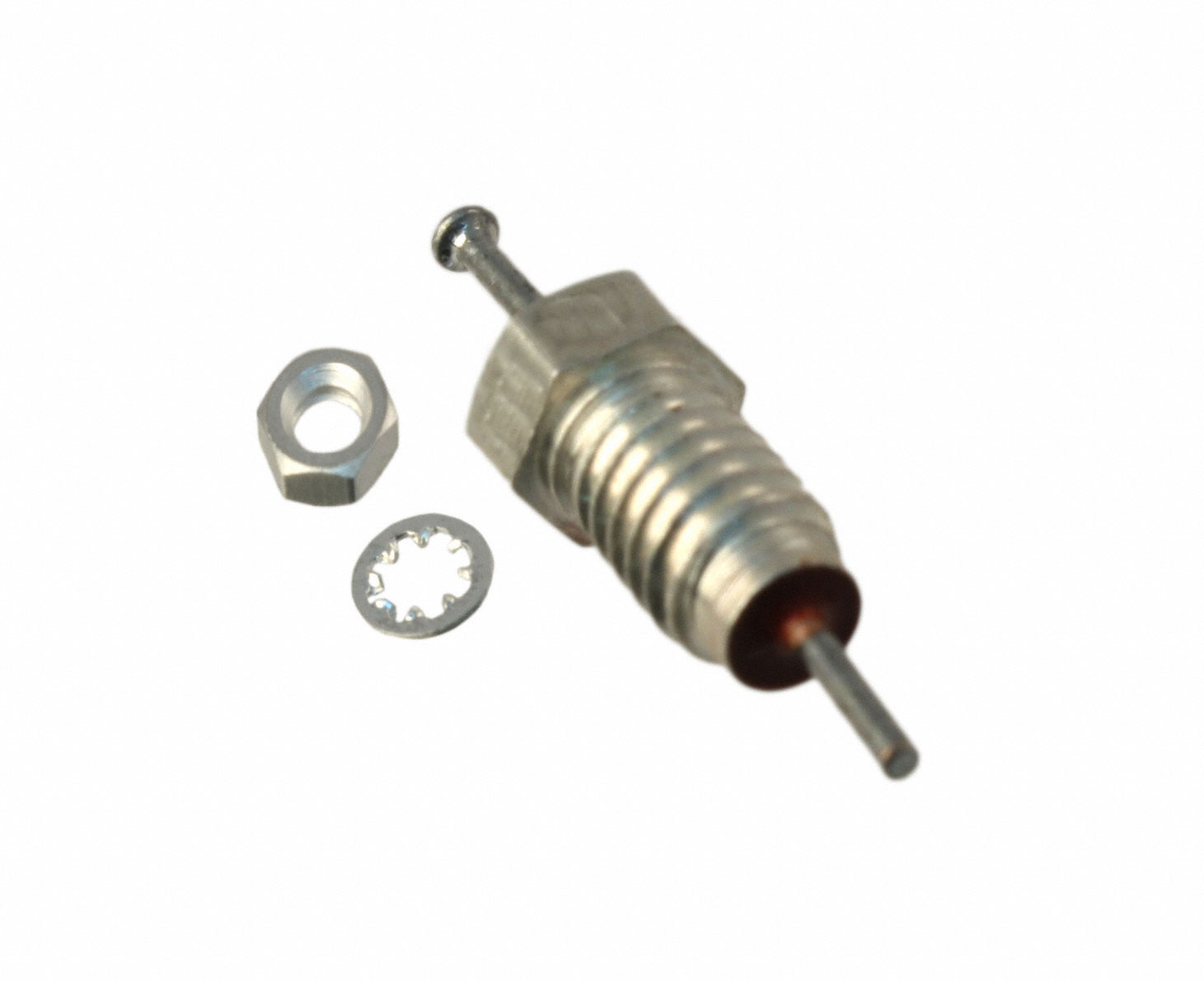

The M15733/61-0008 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the M15733 series and features a Pi filter circuit topology with a capacitance of 1000pF. The component utilizes chassis mounting for secure installation in electronic enclosures.

Feature Summary

• Provides electromagnetic interference suppression through integrated LC filtering
• Utilizes a Pi filter circuit topology for enhanced noise attenuation
• Designed for direct chassis mounting applications

Applications

• Chassis-mounted electronic equipment requiring EMI mitigation
• Power supply input/output filtering in industrial systems
• Signal line protection in sensitive electronic assemblies

Procurement Notes

Verify the manufacturer designation as Tusonix, a subsidiary of CTS Electronic Components, against official documentation. Confirm the part number M15733/61-0008 corresponds to the specified 1000pF capacitance and Pi filter configuration. Ensure compatibility with required chassis mounting standards before procurement.

Selection Notes

Select this component when a 1000pF capacitance value is required for EMI suppression in chassis-mounted configurations. Consider the Pi filter topology for applications needing specific attenuation characteristics. Verify that the physical dimensions and mounting style align with the enclosure design constraints.

Part Context

This component is part of the M15733 series of EMI feedthrough filters produced by Tusonix. These filters are designed to suppress electromagnetic interference in electronic circuits. The series offers various capacitance values and mounting options to suit different application requirements.

Replacement Considerations

Cross-reference with other M15733 series parts from Tusonix or CTS for alternative capacitance values. Verify electrical specifications and mounting compatibility before substituting with components from other manufacturers.
