M15733/61-0011

Overview

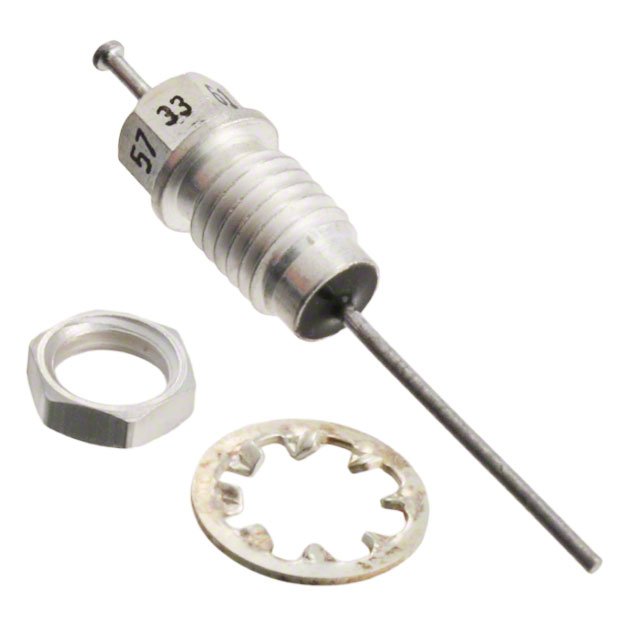

The M15733/61-0011 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 5000 pF and a voltage rating of 100 V with a maximum DC current of 10 A. The component operates within a temperature range of -55°C to +125°C and provides attenuation of 65 dB at 100 MHz. It utilizes a chassis mount configuration.

Feature Summary

• Provides electromagnetic interference suppression through LC (Pi) filter topology
• Designed for high-current applications with 10 A DC current handling capability
• Operates reliably in extreme thermal environments ranging from -55°C to +125°C

Applications

• Military and aerospace electronic systems requiring QPL compliance
• Chassis-mounted power distribution units needing EMI suppression
• High-reliability communication equipment interfaces

Procurement Notes

Verify the specific datasheet version and manufacturing origin when sourcing this component. Confirm that the supplier provides appropriate documentation regarding the QPL status and material composition. Ensure compatibility with existing mounting hardware and verify that the 10 A current rating meets the system requirements before procurement.

Selection Notes

Select this component when a robust, high-capacitance feedthrough filter is required for chassis mounting. The 5000 pF value offers significant filtering for lower frequency noise, while the 100 V rating suits moderate voltage applications. Consider the physical dimensions and thread specifications to ensure proper integration into the enclosure design.

Part Context

This part belongs to the M15733 series of EMI filters produced by Tusonix. These components are often associated with military specifications and Qualified Products List (QPL) standards. The series is known for providing reliable signal integrity in harsh environments through effective noise attenuation.

Replacement Considerations

Direct substitutes may include other MIL-spec feedthrough capacitors with similar capacitance and current ratings. Verify mechanical fit and electrical parameters such as voltage rating and attenuation characteristics before substitution.
