Product Detailed Parameters
- Description：FILTER LC(PI) 10000PF CHAS
- Series：-
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：70dB @ 1GHz ~ 10GHz
- Resistance - Channel (Ohms)：-
- Values：C = 10000pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：50V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing
- Size / Dimension：0.187" Dia x 0.465" L (4.75mm x 11.81mm)
- Height：-
- Current：20 A
Download product information
Overview

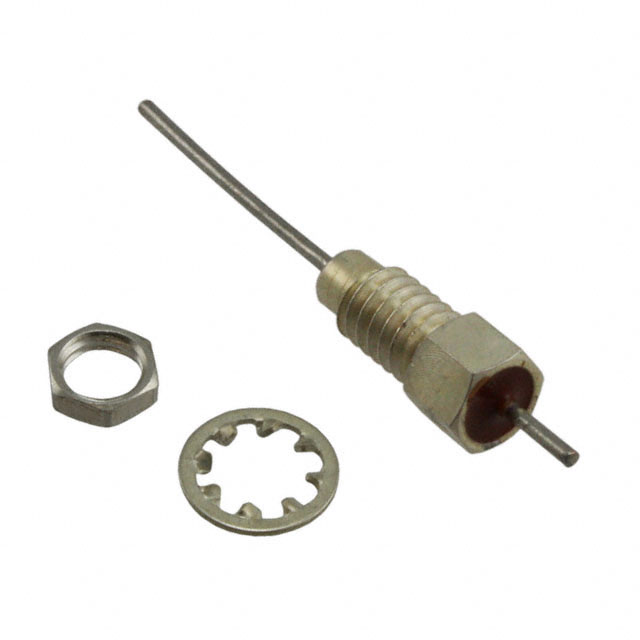

The M15733/61-0014 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance value of 10000 pF (10 nF) and a rated voltage of 50 V. The component supports a maximum DC current of 20 A and operates within a temperature range of -55°C to +125°C. Classified as an LC Pi-type filter, it utilizes chassis mounting for installation.
Feature Summary
- Provides electromagnetic interference suppression through LC Pi-filter topology
- Designed for high-current applications with a 20 A rating
- Capable of operation in extreme environmental temperatures
Applications
- Chassis-mounted electronic filtering
- High-current signal line protection
- EMI suppression in military or industrial equipment
Procurement Notes
Verify the manufacturer designation, specifically Tusonix as a CTS subsidiary, against official documentation. Confirm that the 10000 pF capacitance and 50 V rating align with project requirements. Ensure the 20 A current handling capability meets circuit specifications before procurement.
Selection Notes
Select this component when a 10 nF capacitance and 50 V rating are required for EMI filtering. The 20 A current capacity distinguishes it from lower-rated alternatives. Verify compatibility with chassis mounting methods and ensure the operating temperature range suits the deployment environment.
Part Context
This part belongs to the M15733 series of EMI feedthrough filters produced by Tusonix. These components are designed for robust noise reduction in sensitive electronic systems. The specific model integrates standard electrical parameters into a durable package suitable for demanding operational conditions.
Replacement Considerations
The alternate part number M15733/61-0014 is listed as a direct identifier. Cross-reference with other M15733 series variants to ensure identical electrical characteristics and mechanical fitment before substitution.
FAQ
What is the capacitance value of the M15733/61-0014?
The capacitance value is 10000 pF, which is equivalent to 10 nF.
What is the maximum DC current rating?
The component supports a maximum DC current of 20 A.
