M15733/62-0001

Overview

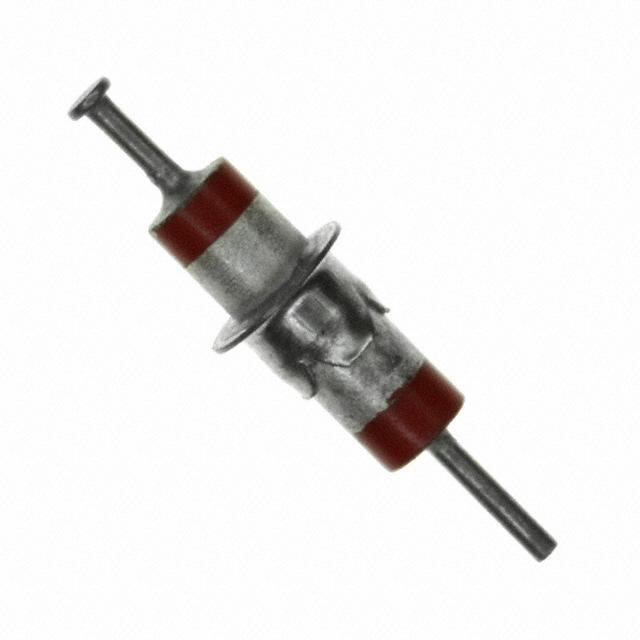

The M15733/62-0001 is a custom EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes an LC (Pi) filter circuit topology to suppress electromagnetic interference. The component features a capacitance value of 1500 pF. As a specialized military-grade part, it is designed for high-reliability applications requiring specific filtering characteristics not covered by standard catalog items.

Feature Summary

• Custom LC Pi filter configuration tailored for specific EMI suppression requirements
• Feedthrough design enabling direct mounting to chassis or panel openings
• High-capacitance density for effective noise attenuation in compact form factors

Applications

• Military and aerospace electronic systems
• Radar and communication equipment power inputs
• Avionics control units requiring strict EMI compliance

Procurement Notes

Verify the exact custom specifications with the manufacturer prior to ordering, as this part number denotes a non-standard configuration. Confirm that the required capacitance and voltage ratings align with your system's operational limits. Ensure compatibility with the specified mounting interface and thread type for proper installation.

Selection Notes

Select this component when standard off-the-shelf filters do not meet specific capacitance or physical constraints. Evaluate the need for custom LC Pi topology versus standard RC networks based on impedance matching requirements. Consider the manufacturing lead time associated with custom orders compared to catalog alternatives.

Part Context

This part belongs to the M15733 series, which encompasses various EMI feedthrough filters used primarily in defense and aerospace sectors. Tusonix produces these components to meet stringent MIL-STD requirements. The series includes both standard and custom variants, with this specific model representing a customized LC Pi solution.

Replacement Considerations

No direct public substitute part numbers are confirmed for this custom specification. Standard equivalents may require re-evaluation of capacitance and mechanical fit. Consult Tusonix engineering for approved alternates if supply chain issues arise.
