M20-6150405

Description：CONN RECPT 2.54MM SMT 8POS
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:c355b69a416c Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RECPT 2.54MM SMT 8POS
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Forked
Style：Board to Board
Number of Positions：8
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole
Termination：Press-Fit
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.437" (11.10mm)
Contact Length - Post：0.476" (12.09mm)
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Spacer
Current Rating (Amps)：1A
Voltage Rating：-

Download product information

M20-6150405

Overview

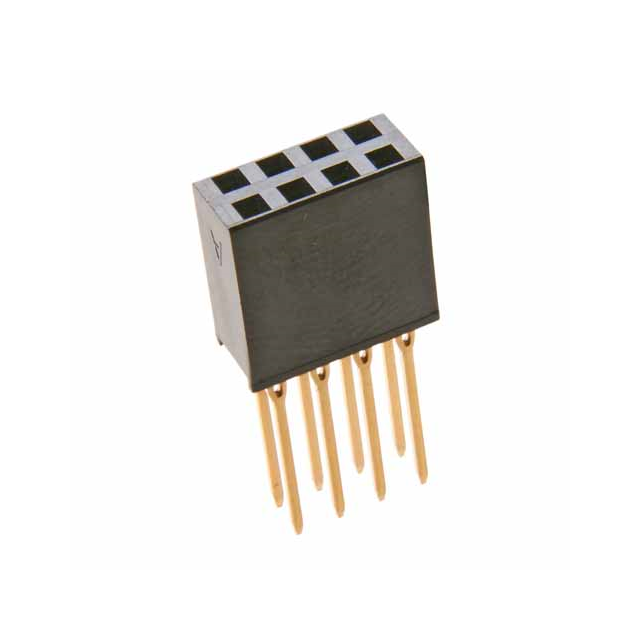

The M20-6150405 is a PC104 press-fit connector and spacer designed for stack-through applications. Manufactured by Harwin, this component facilitates vertical interconnection in modular electronic systems. It utilizes a press-fit termination method to secure the connector to the printed circuit board without soldering. The unit integrates both the electrical contact interface and mechanical spacing elements into a single assembly.

Feature Summary

Supports PC104 standard stack-through architecture
Utilizes press-fit termination for reliable PCB mounting
Integrates connector and spacer functions

Applications

PC104 module stacking
Vertical bus interconnection
Modular embedded system construction

Procurement Notes

Verify the specific datasheet version for precise dimensional tolerances and material specifications. Confirm compatibility with existing PC104 stack heights and mating connector profiles. Ensure the press-fit hole dimensions on the target PCB align with the manufacturer's recommended drill sizes for optimal retention force and electrical performance.

Selection Notes

Select this component when a dedicated PC104 stack-through solution is required. It is suitable for designs needing robust mechanical stability between stacked boards. Consider the press-fit requirement during PCB layout planning. Evaluate space constraints as the unit combines connector and spacer roles.

Part Context

This part belongs to the Harwin M20 series of connectors. The M20 family offers various configurations for board-to-board and wire-to-board connections. This specific model addresses niche requirements for standardized modular stacking interfaces commonly found in industrial and embedded computing applications.
