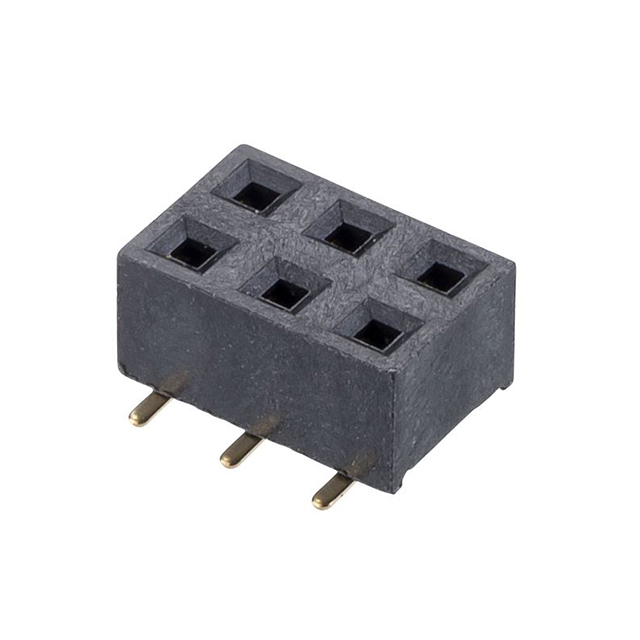

M20-7810345

$0.96

Description：CONN RCPT 6POS 0.1 GOLD SMD
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:8d65c441c3ff Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 6POS 0.1 GOLD SMD
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle, Bottom or Top Entry
Contact Type：Female Socket
Style：Board to Board
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：0.59µin (0.015µm)
Insulation Color：Black
Insulation Height：0.140" (3.56mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Guide
Current Rating (Amps)：3A
Voltage Rating：-

Download product information

M20-7810345

Overview

The M20-7810345 is a surface mount socket assembly from the Harwin M20 series. It features a single row with six positions and a 2.54 mm (0.1 in) pitch. The connector utilizes gold-plated contacts for reliable signal transmission. Designed for bottom or top entry, it supports flexible PCB routing configurations. The unit weight is approximately 320 mg.

Feature Summary

Surface mount construction for automated assembly
Gold contact plating for corrosion resistance
Dual entry capability for board layout flexibility

Applications

Board-to-board interconnections
Signal processing modules
Industrial control systems

Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status prior to integration. Ensure storage conditions prevent contact oxidation. Validate mechanical fit within the target enclosure constraints.

Selection Notes

Evaluate space constraints against the 2.54 mm pitch requirements. Consider the surface mount profile for height limitations. Assess the need for dual-entry functionality during design phase. Verify compatibility with mating pin headers.

Part Context

This component belongs to the M20 series of connectors by Harwin Inc. The series is known for high-density applications requiring robust performance. The specific model provides a compact solution for modern electronic designs.
