M20-7810745

Overview

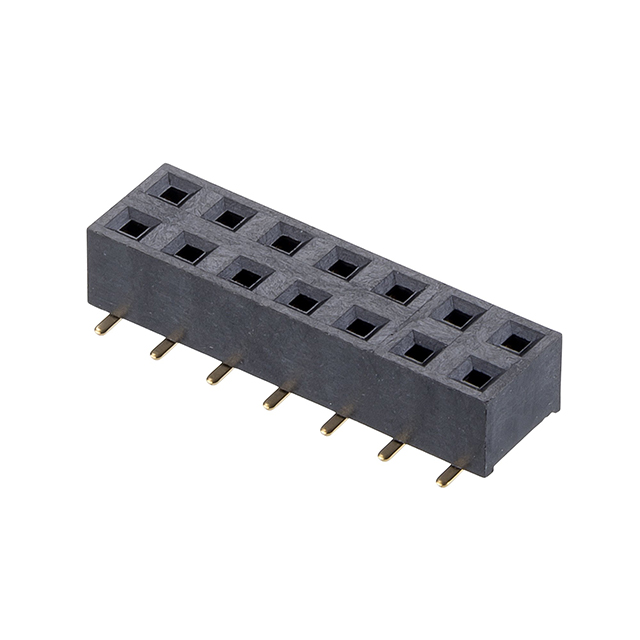

The Harwin M20-7810745 is a 14-position, dual-in-line (DIL) female socket assembly from the M20 series. It features a 2.54 mm pitch and is designed for surface-mount technology with bottom entry termination. The connector utilizes square contact shapes and is constructed with polyamide insulation material, specifically PA9T or Nylon 9T glass-filled variants. This component serves as a general-purpose header and wire housing solution.

Feature Summary

• Dual-in-line configuration providing 14 positions for board-to-board or board-to-wire interconnects
• Surface-mount design with bottom entry solder termination for automated assembly compatibility
• Constructed with high-temperature resistant polyamide insulation material

Applications

• General purpose electronic interconnections
• Board-to-board signal routing
• Board-to-wire harness connections

Procurement Notes

Verify current availability status as this component may be subject to end-of-life notifications. Confirm that the specific insulation grade matches your thermal requirements. Ensure surface-mount footprint dimensions align with your PCB layout constraints before finalizing procurement decisions.

Selection Notes

Select this part for applications requiring a low-profile, dual-row female connector with surface-mount capabilities. The 2.54 mm pitch ensures compatibility with standard pin headers. Consider the PA9T insulation if higher thermal stability is required compared to standard nylon materials.

Part Context

This component belongs to the Harwin M20 series, which offers a range of headers and wire housings. The M20 series is characterized by its robust construction and suitability for various industrial and commercial electronics applications requiring reliable electrical connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Harwin resources for potential obsolescence alternatives.
