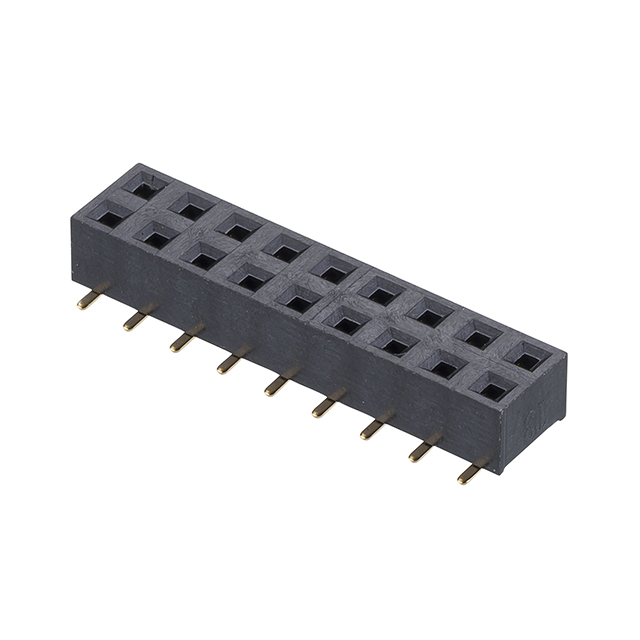

M20-7810945

Product Detailed Parameters

• Description：CONN RCPT 18POS 0.1 GOLD SMD
• Series：M20
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Receptacle, Bottom or Top Entry
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：18
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：0.59µin (0.015µm)
• Insulation Color：Black
• Insulation Height：0.140" (3.56mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：3A
• Voltage Rating：-
