M20-7811245

Overview

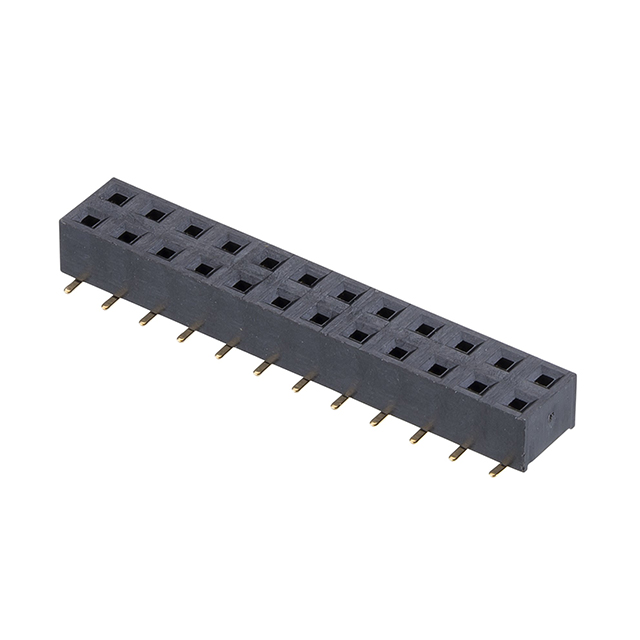

The M20-7811245 is a 24-position female socket header from the Harwin M20 series, designed for surface mount technology. It features a 2.54 mm (0.100 inch) pitch and utilizes gold-plated contacts to ensure reliable signal transmission. The connector supports both bottom and top entry configurations, offering flexibility in board layout design. Constructed with durable materials, it provides stable mechanical performance for high-density interconnect applications requiring robust surface-mount assembly.

Feature Summary

• Supports dual-entry connectivity options for flexible PCB routing
• Utilizes gold-plated contact surfaces for enhanced conductivity
• Engineered for direct surface mount integration

Applications

• High-density electronic circuit boards
• Surface mount assembly processes
• Signal interconnection systems

Procurement Notes

Verify the specific suffix designation against official Harwin documentation to confirm exact plating thickness and material specifications. Ensure compatibility with automated pick-and-place equipment by checking reel packaging requirements. Cross-reference the datasheet for reflow soldering profile limits to prevent thermal damage during manufacturing.

Selection Notes

Select this component when a 24-position female interface is required for surface-mounted designs. The M20 series offers a standardized footprint suitable for space-constrained layouts. Consider the dual-entry feature if vertical clearance or specific mating orientations are critical constraints for the assembly.

Part Context

This part belongs to the M20 series of rectangular connectors, which are widely recognized for their reliability in demanding environments. The series includes various pin counts and mounting styles, providing a scalable solution for diverse electronic interconnect needs within the same product family architecture.

Replacement Considerations

M20-7811246
