M20-7820346

Overview

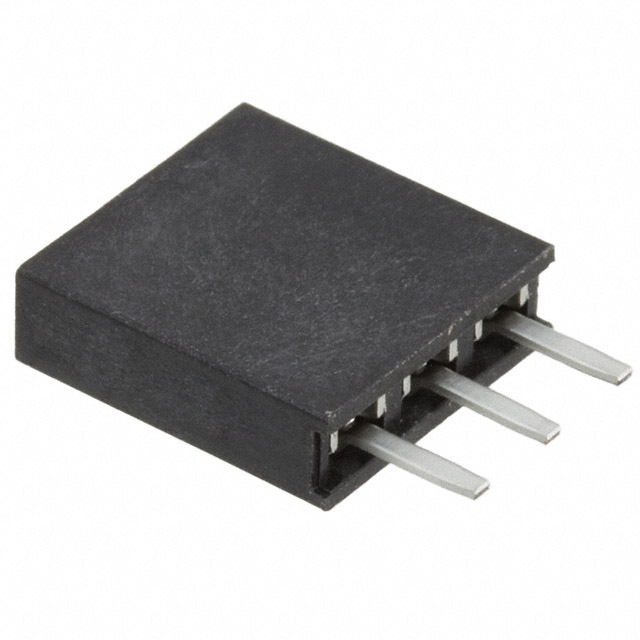

The Harwin M20-7820346 is a 3-position, single-row vertical socket assembly from the M20 series. It features a 2.54 mm pitch and utilizes twin-leaf phosphor bronze contacts with tin plating. Designed for through-hole installation, this board-to-board connector supports a current rating of 12A and operates within a temperature range of -55°C to 105°C. The housing is constructed from black polyamide (nylon) 6T, rated UL94 V-0. Key electrical specifications include a maximum contact resistance of 20mΩ, minimum insulation resistance of 1000MΩ, and a dielectric withstand voltage of 1000VAC.

Feature Summary

• Vertical single-row design for direct PCB mounting
• Twin-leaf phosphor bronze contacts for reliable engagement
• Polyamide 6T housing material offering high thermal stability

Applications

• Industrial control systems
• Telecommunications equipment
• General purpose interconnects

Procurement Notes

Verify the specific contact plating configuration against project requirements, as datasheets indicate availability in both gold and tin variants within the M20-782 series. Confirm that the 12A current rating aligns with the intended load, noting that some general descriptions cite lower ratings. Ensure the through-hole footprint matches the target PCB layout before ordering.

Selection Notes

Select this component when a low-profile, single-row vertical socket is required for board-to-board connections. The 2.54 mm pitch ensures compatibility with standard header pins. Consider the operating temperature range and UL94 V-0 rating if the application involves high heat or strict fire safety standards. Verify pin count and row configuration to match the mating connector.

Part Context

This part belongs to the Harwin M20 series, which offers various configurations including surface mount and right-angle options. The M20-782 specifically denotes the vertical socket variant. Other parts in the series differ by position count, row configuration, and termination style, allowing for scalable design solutions across different electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
