M20-7820546

$0.92

Description：CONN RCPT 5POS 0.1 TIN PCB
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:c4acd414e11b Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 5POS 0.1 TIN PCB
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：5
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.335" (8.51mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：11.04mm, 12.63mm
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：1000V

Download product information

M20-7820546

Overview

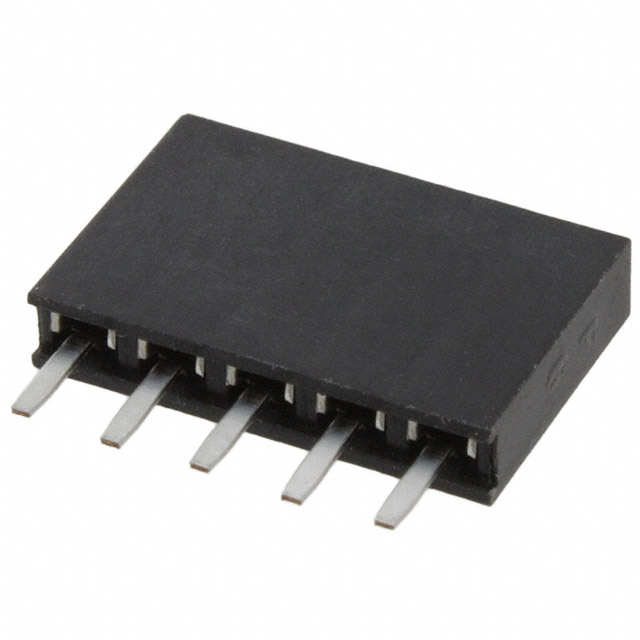

The M20-7820546 is a 5-position, single-row female socket assembly from the Harwin M20 series. It features a 2.54 mm (0.1 inch) pitch and utilizes phosphor bronze contacts with 100% tin over nickel plating. Designed for board-to-board or cable stacking applications, it supports a current rating of 3A and a voltage rating of 1000V. The unit employs a black UL94 V-0 polyamide (PA6T/Nylon 6T) insulator and includes a locking mechanism for secure PCB mounting.

Feature Summary

Single row female socket configuration with 5 positions
Phosphor bronze contacts with 100% tin over nickel plating
Black UL94 V-0 polyamide insulation material
Locking mechanism for secure PCB installation

Applications

General purpose electronic interconnects
Industrial equipment signal routing
Telecommunications hardware connections

Procurement Notes

Verify component authenticity through authorized channels due to potential counterfeit risks. Confirm RoHS compliance status via official documentation before integration. Check end-of-life status as availability may be restricted. Ensure storage conditions maintain contact integrity prior to soldering. Validate pin compatibility with mating header specifications.

Selection Notes

Select this component for applications requiring a 2.54 mm pitch female socket with locking features. Suitable for environments demanding UL94 V-0 rated insulation. Consider the 3A current rating for power distribution needs. Verify mechanical stack height requirements against design constraints. Ensure compatibility with tin-plated male counterparts.

Part Context

Part of the M20 series by Harwin Inc., designed for reliable PCB interconnections. Features a compact single-row layout suitable for space-constrained designs. Utilizes standard 0.1-inch spacing for broad industry compatibility. Integrates locking mechanisms to prevent accidental disconnection during operation.
