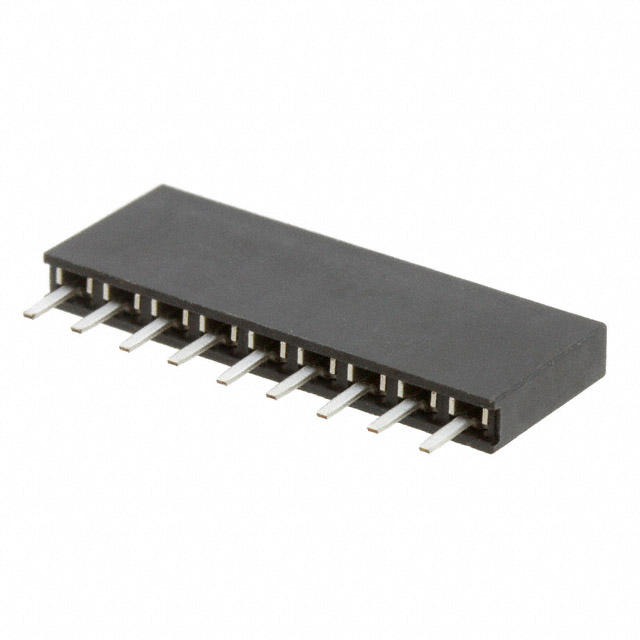

M20-7820946

$1.17

Description：CONN RCPT 9POS 0.1 TIN PCB
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:e4fb629fc637 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 9POS 0.1 TIN PCB
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：9
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.335" (8.51mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：11.04mm, 12.63mm
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：1000V

Download product information

M20-7820946

Overview

The M20-7820946 is a Harwin M20 series header and wire housing socket assembly. It features a single in-line (SIL) configuration with 9 positions and a 2.54 mm pitch. Designed for vertical through-board mounting, it utilizes solder termination. The contacts are made of brass with gold and tin plating, while the insulation material is polyamide (PA6T). This component supports a voltage rating of 1000V and is intended for general purpose, industrial, and telecommunications applications.

Feature Summary

Vertical single in-line socket design for board-to-board or wire-to-board connections
Gold and tin plated brass contacts ensuring reliable signal transmission
Polyamide (PA6T) insulation material providing structural stability

Applications

General purpose electronic circuits
Industrial control systems
Telecommunications equipment

Procurement Notes

Verify the specific contact plating configuration against current datasheets, as suffix variations can alter material properties. Confirm RoHS compliance status prior to integration. Ensure compatibility with mating pin headers regarding pitch and row alignment. Check for any obsolescence notices from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when a vertical single-row female connector is required for high-voltage applications up to 1000V. The 9-position count suits moderate density interconnects. Consider the PA6T insulation for thermal resilience. Verify that the gold-tin contact finish meets the environmental corrosion resistance requirements of the target deployment zone.

Part Context

This part belongs to the Harwin M20 series, which offers a range of 2.54 mm pitch connectors. The series includes various row counts and termination styles. The M20-7820946 specifically represents the 9-pin vertical SIL variant within this ecosystem, designed for standard PCB mounting techniques.
