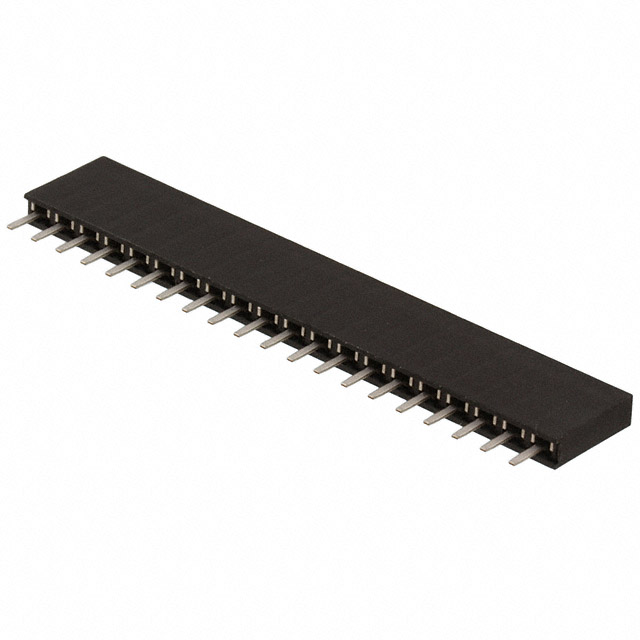

M20-7822046

$1.98

Description：CONN RCPT 20POS 0.1 TIN PCB
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:7066c63b6162 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 20POS 0.1 TIN PCB
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：20
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.335" (8.51mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：11.04mm, 12.63mm
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：1000V

Download product information

M20-7822046

Overview

The Harwin M20-7822046 is a single row, 20-position vertical socket assembly from the M20 series. It features a 2.54 mm pitch and utilizes tin-plated phosphor bronze contacts housed in black UL94V-0 polyamide (nylon) 6T. Designed for through-board mounting, it includes 3mm solder PC tails with a tin finish on the termination area. This component serves as a board-to-board or board-to-wire receptacle interface.

Feature Summary

Vertical single-row configuration for standard PCB mounting
Tin-plated phosphor bronze contacts for reliable conductivity
Black UL94V-0 polyamide housing for thermal stability

Applications

Board-to-board interconnection systems
Wire-to-board connection assemblies
General electronic circuit integration

Procurement Notes

Verify the specific contact plating finish against project requirements, as sources indicate variations between tin-only and gold-plus-tin options for this part number. Confirm that the 3mm tail length matches the target PCB thickness. Ensure the polyamide 6T material rating meets environmental standards. Cross-reference the manufacturer datasheet to confirm current production status and availability constraints before finalizing procurement plans.

Selection Notes

Select this component when a single-row, vertical socket with a 2.54 mm pitch is required. The choice depends on the need for through-hole installation with 3mm tails. Consider the nylon 6T housing for durability. Evaluate if the 20-position count fits the design. Verify contact material compatibility with mating pins. Assess space constraints for the vertical profile.

Part Context

This part belongs to the Harwin M20 series of headers and wire housings. The series offers various configurations including dual inline and surface mount options. The M20-7822046 specifically addresses single-row vertical needs. It complements other M20 components by providing standardized spacing and robust mechanical properties for diverse electronic applications.
