M20-7823242

Overview

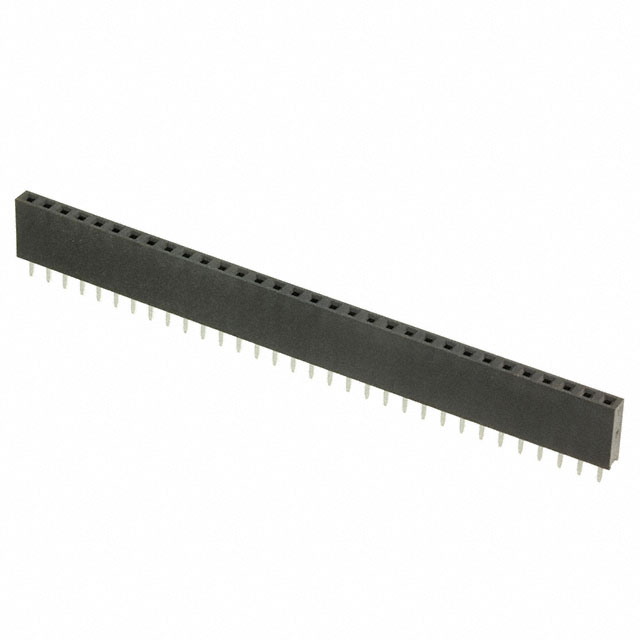

The M20-7823242 is a 32-position female receptacle connector from the Harwin M20 series. It features a 2.54mm (0.1 inch) pitch and utilizes a single in-line (SIL) configuration for through-hole mounting. The connector employs gold and tin contact plating to ensure reliable signal transmission. Designed for board-to-board or cable stacking applications, it offers an insulation height of 8.5mm and a contact length of 3mm. This component is engineered for general-purpose industrial environments requiring robust mechanical stability.

Feature Summary

• Features gold and tin contact plating for enhanced conductivity and corrosion resistance
• Utilizes a single in-line design with a standard 2.54mm pitch for universal compatibility
• Constructed with high-strength materials suitable for through-hole PCB integration

Applications

• General-purpose industrial control systems
• Telecommunications equipment interconnects
• Board-to-board signal routing

Procurement Notes

Verify the specific pin count and termination style against current project requirements before ordering. Confirm that the through-hole footprint matches the target PCB layout. Check for any recent obsolescence notices from Harwin Inc., as availability may vary across distributors. Ensure compliance with relevant environmental standards required by the final assembly.

Selection Notes

Select this model when a low-profile, single-row female connector is needed for through-hole applications. The 2.54mm pitch ensures compatibility with standard header pins. Consider the 8.5mm insulation height for adequate spacing. Verify that the gold/tin plating meets the electrical performance needs of the specific circuit environment.

Part Context

This part belongs to the M20 series, a range of rectangular connectors known for their versatility in various electronic assemblies. The series includes both male and female variants with different row configurations and termination methods. The M20-7823242 specifically addresses the need for reliable single-row connections in space-constrained designs.

Replacement Considerations

Direct substitutes within the same series include variations with different pin counts or plating options. For equivalent specifications, verify other Harwin M20 series receptacles with matching 2.54mm pitch and through-hole termination. Cross-reference with industry-standard equivalents if Harwin supply is limited.
