M20-7823646

Overview

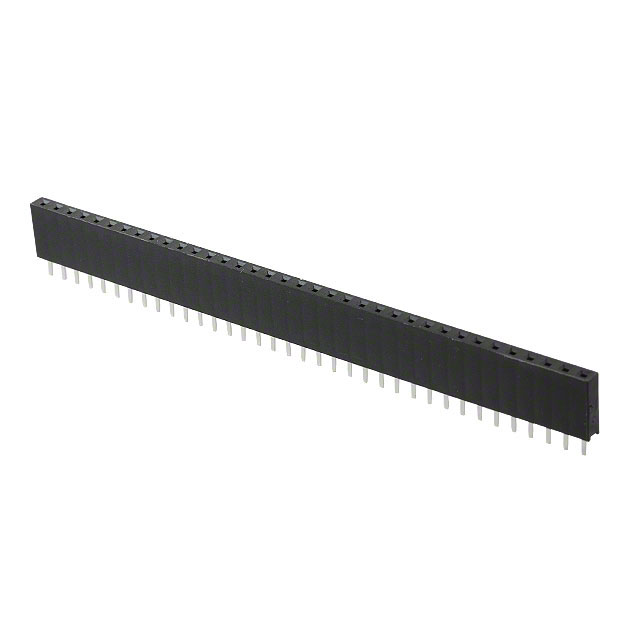

The Harwin M20-7823646 is a 36-position single in-line (SIL) vertical socket assembly from the M20 series. It features a 2.54 mm pitch and is designed for through-board applications. The connector utilizes polyamide insulation material and supports a current rating of 3A with a voltage rating of 1000V. The housing is tin-plated, ensuring reliable connectivity for general purpose, industrial, and telecommunications environments.

Feature Summary

• Vertical single in-line socket design for through-board mounting
• Tin-plated contacts for corrosion resistance and conductivity
• Polyamide insulation providing thermal stability

Applications

• General purpose electronic interconnects
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify component authenticity against official Harwin documentation. Confirm that the tin-plated finish matches project requirements. Ensure the vertical SIL form factor aligns with PCB layout constraints. Check for RoHS compliance status via the manufacturer's technical data sheet before integration.

Selection Notes

Select this component when a 36-pin vertical interface is required. The 2.54 mm pitch ensures compatibility with standard header pins. Consider the 1000V rating for high-voltage isolation needs. Verify that the polyamide housing meets environmental temperature specifications for the target application.

Part Context

This part belongs to the Harwin M20 series, which provides robust header and wire housing solutions. The M20-7823646 specifically addresses high-density connection needs with its 36-position configuration. It complements other M20 series components by offering a standardized vertical orientation for board-to-board or cable connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
