Product Detailed Parameters
- Description：CONN RCPT 16POS 0.1 GOLD PCB
- Series：M20
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：Black
- Insulation Height：0.335" (8.51mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：11.04mm, 12.63mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：3A
- Voltage Rating：1000V
Download product information
Overview

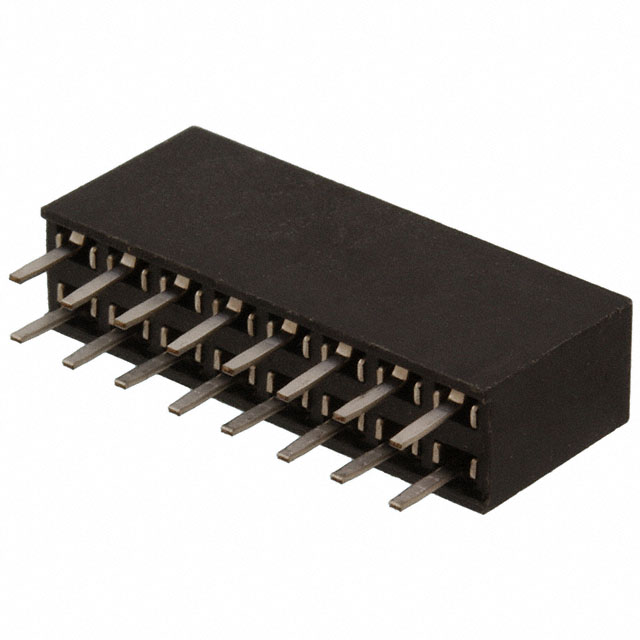

The Harwin M20-7830842 is a PCB receptacle from the M20 series, designed for board-to-board connections. It features a 2-row configuration with 16 contacts and a 2.54 mm pitch. The component utilizes through-hole mounting and solder termination. It has a current rating of 3A and a voltage rating of 1000V. Operating temperatures range from -40°C to +105°C. Insulation material is Polyamide (PA6T) or Nylon 6T.
Feature Summary
- Dual-row socket assembly for reliable board-to-board interconnects
- High voltage insulation capability up to 1000V
- Thermal stability across extended industrial temperature ranges
Applications
- General purpose electronic assemblies
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify RoHS compliance status via official datasheets before procurement. Confirm end-of-life status as this part may be obsolete. Ensure compatibility with mating pin headers regarding contact plating and housing dimensions. Validate thermal ratings against specific application requirements.
Selection Notes
Select this component for applications requiring high-voltage isolation in compact layouts. The 2.54 mm pitch ensures standard compatibility with industry connectors. Consider the through-hole mounting method for robust mechanical fixation. Verify that the 3A current rating meets circuit load demands.
Part Context
This part belongs to the Harwin M20 series, which offers various header and wire housing solutions. The M20 line is characterized by its versatility in pitch options and mounting styles. This specific model represents a fixed 16-position variant within that broader family.
Replacement Considerations
M20-7831042
