Product Detailed Parameters

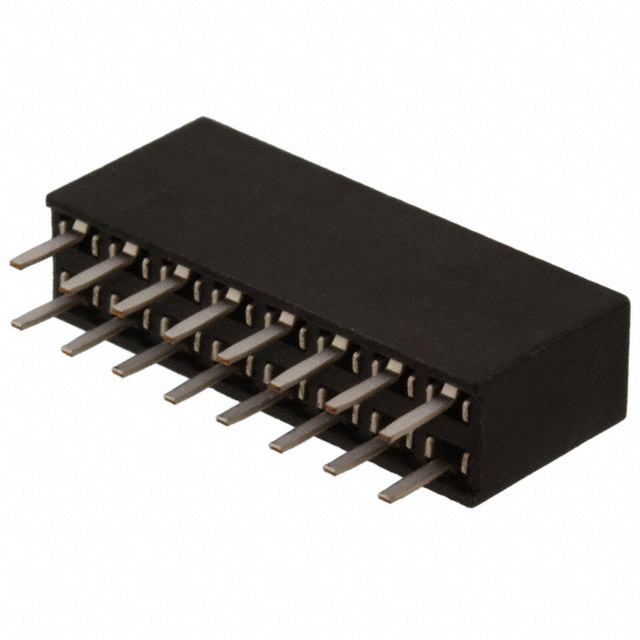

- Description：CONN RCPT 16POS 0.1 TIN PCB
- Series：M20
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：0.335" (8.51mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：11.04mm, 12.63mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：3A
- Voltage Rating：1000V
Download product information
Overview
The Harwin M20-7830846 is a 16-position PCB receptacle connector from the M20 series. It features a 2.54 mm (0.1 inch) pitch with two rows of female sockets. Designed for through-hole mounting, it utilizes tin-plated phosphor bronze contacts and a nylon housing. The connector supports board-to-board applications with a current rating of 12A and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual beam contact design provides enhanced spring force and reliable electrical connection.
- Straight vertical orientation facilitates standard through-hole PCB assembly.
- Nylon housing material offers structural integrity and insulation.
Applications
- Board-to-board interconnections
- Industrial embedded systems
- Commercial electronic assemblies
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm plating type and compliance status. Ensure the selected variant matches the required termination style and contact count for the target application.
Selection Notes
Select this component when a 16-pin straight socket with 2.54mm pitch is required. Consider the M20 series characteristics for general-purpose board-to-board connections requiring robust dual-beam contacts.
Part Context
This part belongs to the Harwin M20 series, which provides industry-standard PCB sockets. The series is designed for high-reliability applications in industrial and commercial sectors, offering various pin counts and configurations.
Replacement Considerations
Cross-reference with other 16-pin, 2-row, 2.54mm pitch through-hole female headers. Verify mechanical dimensions and contact plating compatibility before substitution.
