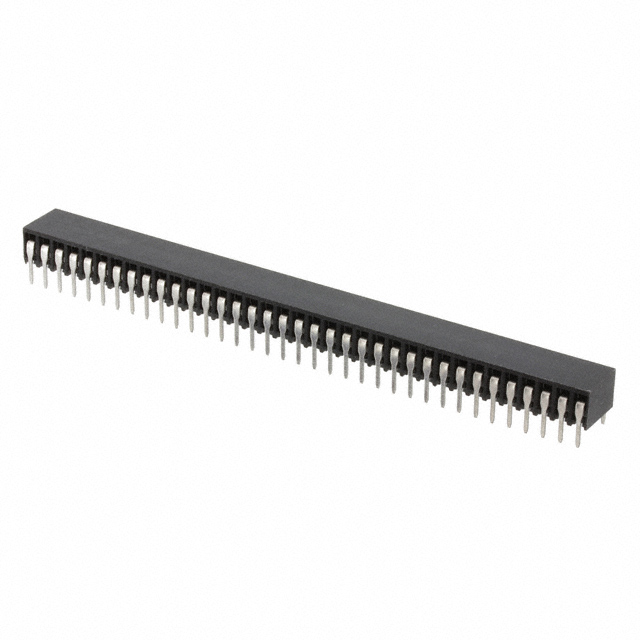

M20-7883646

$4.12

Description：CONN RCPT 72POS 0.1 TIN PCB R/A
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:f0332cfb83f1 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 72POS 0.1 TIN PCB R/A
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：72
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.232" (5.90mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：1000V

Download product information

M20-7883646

Overview

The M20-7883646 is a card edge connector manufactured by Harwin Inc. It belongs to the Datamate J-Tek series, designed for high-density board-to-board interconnections. The component features a double-sided contact configuration with a 1.27mm (0.05 inch) pitch. It utilizes a vertical through-hole mounting style with solder tail termination for secure PCB attachment. The housing is constructed from black LCP material, offering UL94 V-0 flammability rating and robust thermal stability. Electrical specifications include a rated current of 1A per contact and a voltage rating of 50V AC. The connector supports a mating cycle of 500 operations and operates within a temperature range of -55°C to +125°C.
