M20-7890446

$1.06

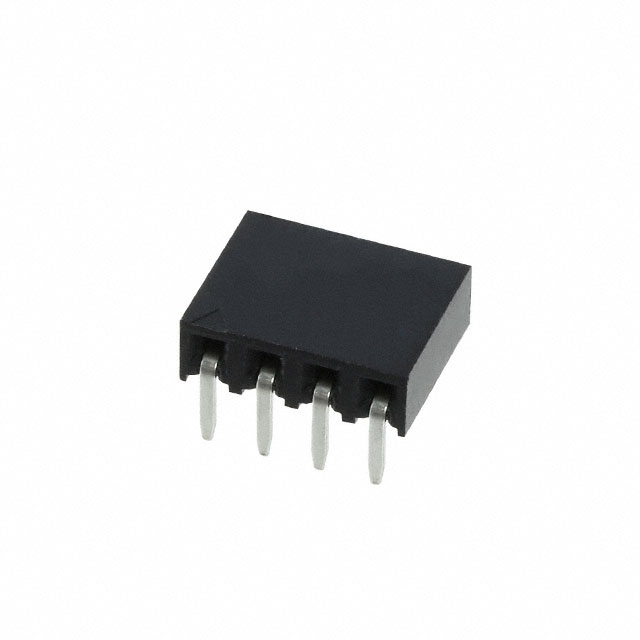

Description：CONN RCPT 4POS 0.1 TIN PCB R/A
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:d75e9174c9cc Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 4POS 0.1 TIN PCB R/A
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：4
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Insulation Color：Black
Insulation Height：0.130" (3.30mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：1000V

Download product information

M20-7890446

Overview

The Harwin M20-7890446 is a single-row, right-angle pin header from the M20 series. It features 10 positions with a 2.54 mm pitch and utilizes through-hole termination. The connector system supports board-to-board applications. Rated current is 12A per contact. Operating temperature ranges from -40°C to 105°C. Housing material is nylon. Contacts are made of bronze with nickel-tin plating. Tail pin length is 3mm.
