M20-7893646

Headers, Receptacles, Female Sockets Overview

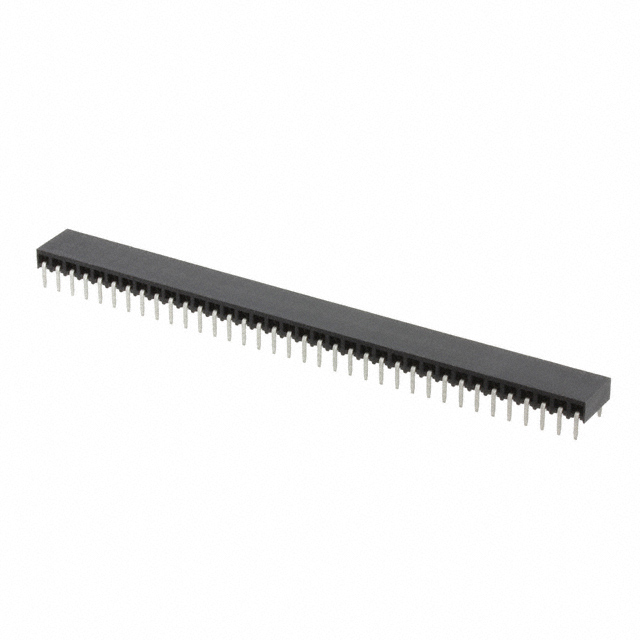

The M20-7893646 is a 36-position female socket connector from the Harwin M20 series. It features a 2.54 mm (0.100 inch) pitch and utilizes through-hole right-angle termination for PCB mounting. The housing is constructed from black nylon, while contacts are made of brass with tin plating. Designed for board-to-board applications, this component operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle through-hole design facilitates dense PCB layouts
• Tin-plated brass contacts ensure reliable conductivity
• Black nylon housing provides structural integrity

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Industrial control systems
• Embedded PC architectures

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and orientation against project requirements. Confirm that the right-angle footprint matches the PCB layout. Ensure compatibility with mating male headers in the same M20 series. Check for RoHS compliance documentation if required by regulatory standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when vertical clearance allows for right-angle mounting. Suitable for applications requiring robust mechanical retention via through-hole soldering. Consider the tin plating for general-purpose use rather than high-corrosion environments.

Headers, Receptacles, Female Sockets Part Context

Part of the M20 series, known for industrial standard reliability. Offers various configurations including single and double rows. Compatible with other M20 series components for system integration.
