M20-7910542R

Headers, Receptacles, Female Sockets Overview

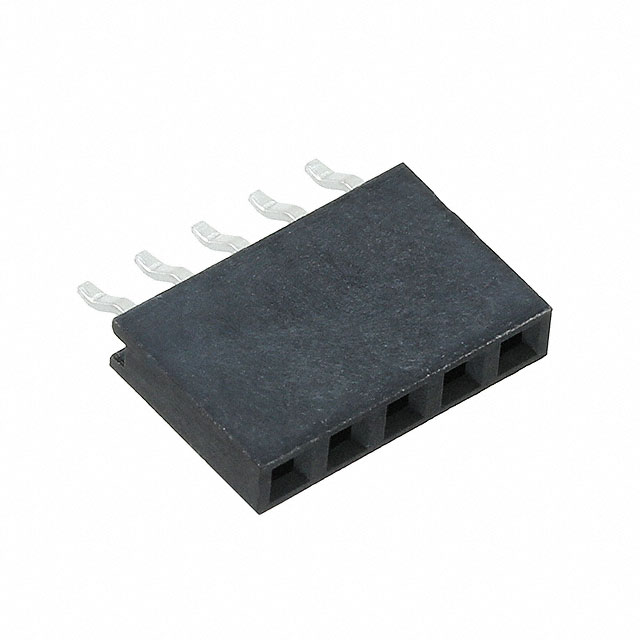

The M20-7910542R is a surface-mount PCB receptacle from the Harwin M20 series, designed for board-to-board interconnections. It features a single row with five contacts and utilizes a 2.54 mm pitch. The component is engineered for right-angle mounting to facilitate compact circuit layouts.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount construction for automated assembly
• Right-angle orientation for space-efficient design
• Single-row configuration with five positions

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnects
• Compact electronic assemblies requiring right-angle routing
• Automated surface-mount production lines

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'R' against official datasheets to confirm surface-mount compatibility and right-angle orientation. Ensure that the single-row, five-position configuration matches the target circuit requirements before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required for single-row applications. The surface-mount format supports high-volume manufacturing processes while maintaining reliable electrical contact through the standard 2.54 mm spacing.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the M20 series, which provides versatile interconnection solutions with a 2.54 mm pitch. The series includes various configurations for both through-hole and surface-mount technologies, catering to diverse industrial and consumer electronics needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other M20 series surface-mount receptacles with matching pitch and row count, such as M20-7910342R, provided they meet the same mechanical and electrical specifications.
