Product Detailed Parameters

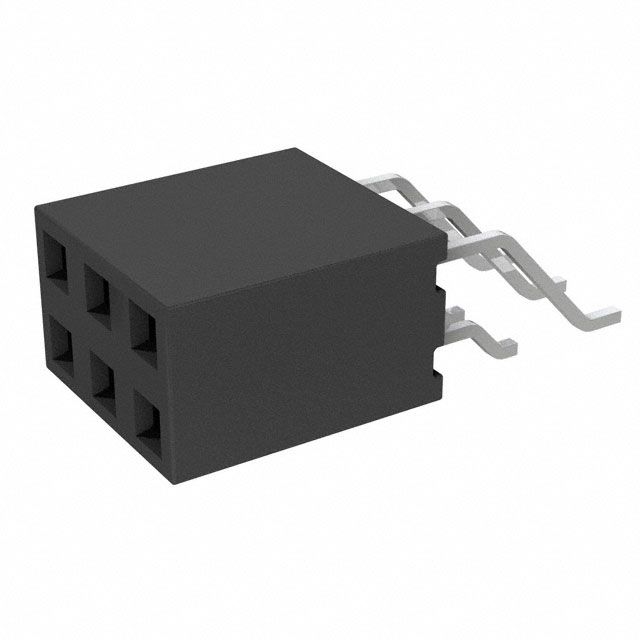

- Description：CONN RCPT 6POS 0.1 GOLD SMD R/A
- Series：M20
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Receptacle
- Contact Type：Forked
- Style：Board to Board
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：0.59µin (0.015µm)
- Insulation Color：Black
- Insulation Height：0.197" (5.00mm)
- Contact Length - Post：-
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：3A
- Voltage Rating：-
Download product information
Overview
The Harwin M20-7920342R is a surface mount header connector from the M20 series, designed for board-to-board or cable applications. It features a vertical orientation with a 2.54mm (0.100 inch) pitch and six positions in a single row. The connector utilizes push-pull fastening for secure mating and gold-plated contacts to ensure reliable signal transmission. Rated for 3A per contact, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black nylon 6T material, providing UL94 V-0 flammability rating. This component is intended for high-density electronic assemblies requiring robust SMT integration.
Feature Summary
- Surface mount technology implementation for automated PCB assembly processes
- Push-pull fastening mechanism ensures secure mechanical retention during mating cycles
- Gold-plated contact finish provides corrosion resistance and stable electrical performance
- Nylon 6T insulation offers high thermal stability and flame retardancy
Applications
- High-density board-to-board interconnections
- Cable-to-board connections in compact electronics
- Industrial control systems requiring reliable signal routing
- Consumer electronics with space-constrained layouts
Procurement Notes
Verify the specific ordering suffix 'R' confirms the reel packaging configuration as documented by Harwin Inc. Ensure compatibility with standard reflow soldering profiles for surface mount components. Confirm that the 2.54mm pitch aligns with the target PCB footprint design. Cross-reference the datasheet for precise dimensional tolerances required for the assembly environment.
Selection Notes
Select this model when a vertical surface mount header with push-pull retention is required. The 2.54mm pitch suits general-purpose digital and analog signal routing. Consider the 3A current rating for power distribution needs. Verify that the single-row configuration fits the available board width constraints compared to dual-row alternatives.
Part Context
This component belongs to the Harwin M20 series, which specializes in 2.54mm pitch connectors. The series includes various configurations such as through-hole and surface mount options. The M20-7920342R specifically addresses the need for vertical SMT headers with secure locking mechanisms, differentiating it from standard snap-fit or screw-lock variants in the same product family.
Replacement Considerations
Direct substitutes within the M20 series include M20-7920242R for similar specifications. Other compatible options may include M20-8760342R if surface mount orientation differs. Verify pin count and pitch compatibility before substitution.
