M20-7920842R

Headers, Receptacles, Female Sockets Overview

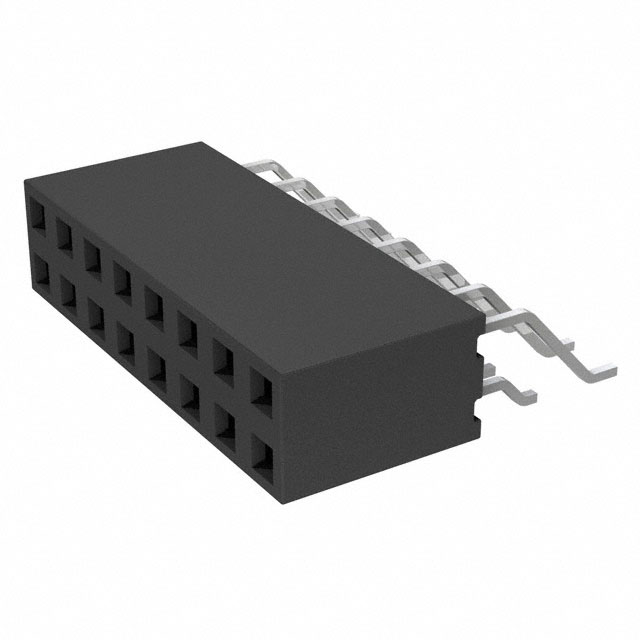

The Harwin M20-7920842R is a 16-position board-to-board receptacle connector from the M20 series, designed for surface-mount technology (SMT) applications. It features a 2.54mm pitch and right-angle orientation, facilitating compact vertical interconnects on printed circuit boards. The component utilizes dual beam contacts to ensure reliable spring action and mating stability. Constructed with a robust housing and precision-plated terminals, it supports high-density electronic assemblies requiring durable signal transmission.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount right-angle receptacle design for space-efficient PCB integration
• Dual beam contact system providing enhanced spring force and mating reliability
• 2.54mm pitch configuration compatible with standard M20 header counterparts

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic interconnects in consumer electronics
• High-density board-to-board connections in industrial control systems
• Compact device assembly requiring vertical SMT mounting solutions

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the suffix 'R' denotes the specific reel packaging format required for automated surface-mount placement. Confirm that the right-angle receptacle geometry matches the target PCB layout constraints. Ensure compatibility with corresponding M20 series headers featuring matching pin counts and contact configurations before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle SMT receptacle is required for 16-channel interconnects. The dual beam contact technology offers superior mechanical resilience compared to single-beam alternatives. Consider the 2.54mm pitch as a standard interface for broad ecosystem compatibility with existing M20 series header components.

Headers, Receptacles, Female Sockets Part Context

Part of the Harwin M20 range, which specializes in 2.54mm pitch connectors. This series is engineered for general-purpose interconnects across various industries. The M20-7920842R specifically addresses needs for right-angle board-to-board connections using surface-mount techniques.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other M20 series right-angle receptacles with identical 16-position counts and SMT termination methods. Verify that alternative parts maintain the same 2.54mm pitch and dual beam contact architecture to ensure functional equivalence.
