M20-7921042R

Overview

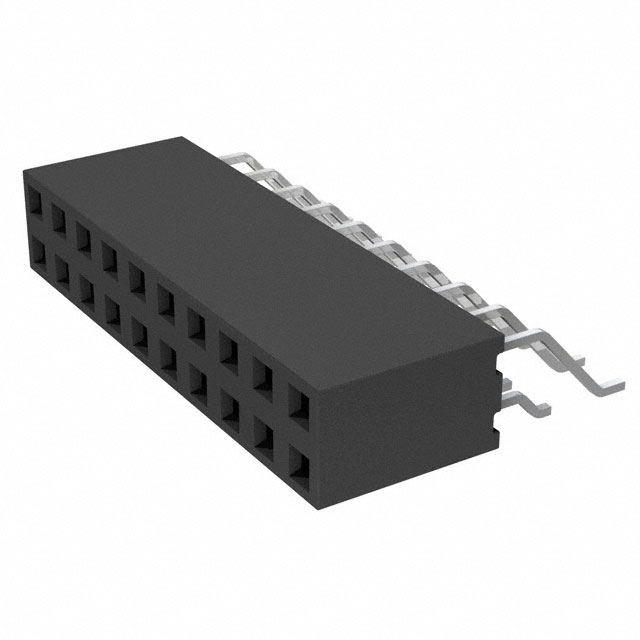

The Harwin M20-7921042R is a 20-position receptacle connector from the M20 series, designed for surface-mount applications. It features a right-angle package with a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated to ensure reliable signal transmission. This component serves as a female socket assembly, intended for board-to-board or cable connections in electronic systems requiring robust interconnect solutions.

Feature Summary

• Right-angle surface-mount design for compact PCB integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• 20-position configuration with standard 2.54 mm spacing

Applications

• Board-to-board interconnections
• Cable-to-board assemblies
• High-density electronic modules

Procurement Notes

Verify the specific suffix 'R' indicates the right-angle orientation during procurement. Confirm RoHS compliance status through official datasheets. Ensure compatibility with mating header pins of matching pitch and contact count. Check for end-of-life notices as availability may vary by region.

Selection Notes

Select this model when right-angle mounting is required for space-constrained designs. The 20-position count suits moderate density needs. Gold plating is preferred for environments requiring high reliability. Verify that the surface-mount footprint matches the target PCB layout constraints.

Part Context

This part belongs to the Harwin M20 series, known for versatile interconnect solutions. The M20 family includes various pin counts and configurations. The M20-7921042R specifically addresses the need for angled receptacles in modern electronics manufacturing processes.

Replacement Considerations

M20-7921042 is the straight-height variant. M20-7862342 is a different series socket. No direct public substitutes are confirmed; verify mechanical fit before substitution.
