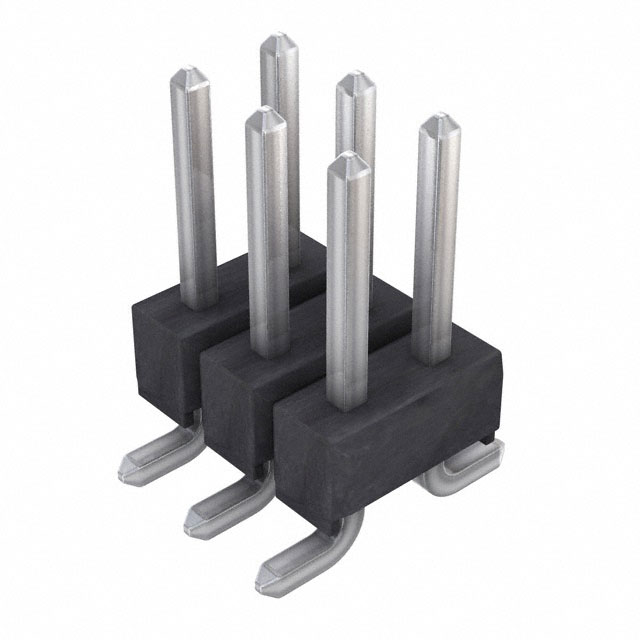

M20-8760346

$0.39

Description：CONN HEADER SMD 6POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk

SKU:165b7b1e965a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 6POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.228" (5.80mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：250V

Download product information

M20-8760346

Overview

The Harwin M20-8760346 is a surface-mount pin header from the M20 series, featuring a 2.54 mm pitch and six positions in a single row. It utilizes gold-plated brass contacts rated for 3A current and operates within a temperature range of -40°C to 105°C. The connector employs a nylon insulation material and offers a mating pin length of 5.8mm. Designed for board-to-board or cable applications, it provides a reliable interconnection solution with a standard lead time of 24 weeks.

Feature Summary

Surface-mount construction for automated PCB assembly
Gold-plated brass contacts ensure corrosion resistance and stable conductivity
Nylon insulation housing provides mechanical stability and thermal endurance

Applications

Board-to-board interconnections
Cable-to-board connections
Embedded electronic systems
Industrial control modules

Procurement Notes

Verify the specific contact plating configuration and insulation material grade against the official datasheet before procurement. Confirm that the surface-mount footprint matches the design requirements. Ensure compatibility with standard reflow soldering profiles. Check for any RoHS compliance documentation if required by project specifications. Validate the 24-week lead time availability against production schedules.

Selection Notes

Select this component when a low-profile, surface-mount male header is required for high-density layouts. The 2.54 mm pitch suits general-purpose interconnects where standard spacing is acceptable. Consider the 3A current rating for power distribution needs. Evaluate the gold plating option for environments requiring enhanced durability compared to tin variants. Ensure the single-row configuration fits the available board space constraints.

Part Context

This part belongs to the Harwin M20 series, a family of industrial-standard connectors designed for compact PCB applications. The series supports various configurations including single and double rows with different mounting styles. These connectors are widely used in embedded PCs, motherboards, and large electronic systems due to their reliability and density capabilities.
