Product Detailed Parameters
- Description：CONN HEADER SMD 8POS 2.54MM
- Series：M20
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.228" (5.80mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A per Contact
- Voltage Rating：250V
Download product information
Overview

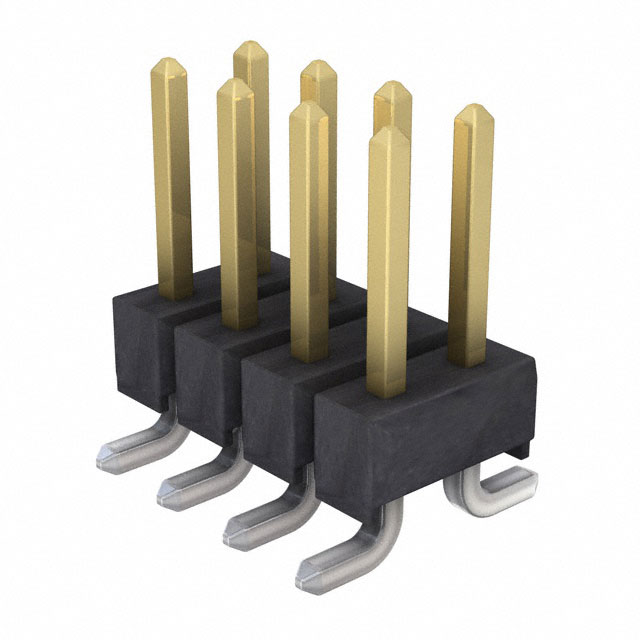

The Harwin M20-8760442 is an 8-position, dual-row pin header from the M20 series. It features a 2.54 mm pitch and is designed for surface mount technology (SMT) installation. The connector supports board-to-board and wire-to-board applications with straight orientation. Rated current is 3 A per contact, with a voltage rating of 250 V. Operating temperature ranges from -40°C to 105°C. Contacts are gold-plated brass pins housed in black nylon (PA6T).
Feature Summary
- Dual-row SMT pin header configuration for compact board-to-board or wire-to-board interconnections.
- Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.
- Straight orientation design facilitates direct vertical mounting on PCBs.
- Unshrouded housing allows for flexible mating options with various cable assemblies.
Applications
- Board-to-board interconnects in electronic modules.
- Wire-to-board connections for harness integration.
- Surface mount assembly in consumer electronics.
- Industrial control system circuit boards.
Procurement Notes
Verify the exact part number M20-8760442 against official Harwin documentation to confirm specifications. Ensure compatibility with surface mount processes and check for any specific handling requirements due to the SMT package type. Confirm that the 2.54 mm pitch and 8-pin configuration match the design intent before procurement.
Selection Notes
Select this component when a low-profile, dual-row SMT header is required for 2.54 mm pitch systems. Consider the 3 A current rating and -40°C to 105°C operating range for environmental suitability. The unshrouded design is suitable where space is limited and mating connectors are compatible with open-pin layouts.
Part Context
This part belongs to the Harwin M20 series, which offers a range of 2.54 mm pitch connectors. The M20 series is known for its versatility in both through-hole and surface mount configurations. This specific model represents the 8-position variant within the dual-row, straight, SMT header category.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Harwin technical support for cross-reference information if alternative sourcing is necessary.
FAQ
What is the contact material for the M20-8760442?
The contacts are made of brass with gold plating.
Is the M20-8760442 shrouded or unshrouded?
It is an unshrouded connector.
