Product Detailed Parameters

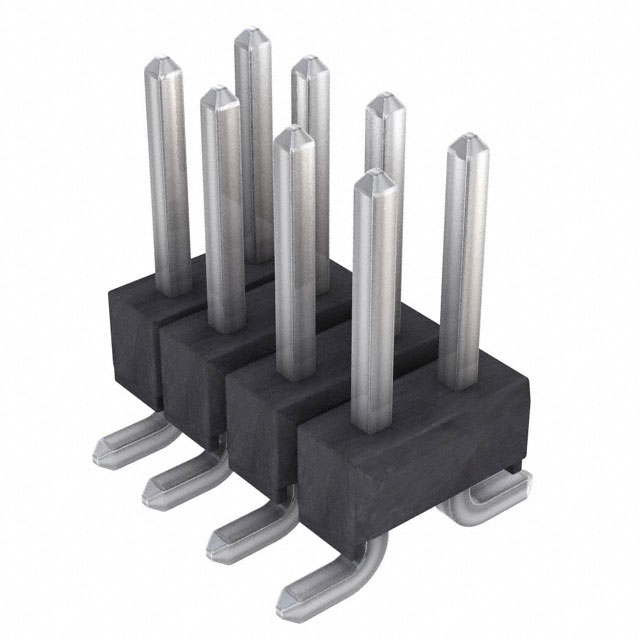

- Description：CONN HEADER SMD 8POS 2.54MM
- Series：M20
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.228" (5.80mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：Pick and Place
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A per Contact
- Voltage Rating：250V
Download product information
Overview
The Harwin M20-8760446P is a surface-mount rectangular header connector from the M20 series, designed for board-to-board or cable applications. It features 4 positions with a 2.54 mm (0.100 inch) pitch and a single row configuration. The connector utilizes gold-plated brass contacts and a black polyamide (PA6T) insulator rated UL94 V-0. Rated at 3A per contact and 250V, it operates within a temperature range of -40°C to 105°C. The mating pin length is 5.80 mm, with stacking heights available at 11.53 mm, 12.23 mm, 12.63 mm, and 18.13 mm.
Feature Summary
- Surface-mount design compatible with automated pick-and-place assembly processes
- Gold-plated square contacts ensure reliable electrical performance in board-to-board connections
- UL94 V-0 rated polyamide insulation provides flame resistance and thermal stability
Applications
- Compact electronic module interconnections
- Industrial control system circuit boards
- Data center hardware assemblies
Procurement Notes
Verify the specific suffix 'P' indicates tape-and-reel packaging suitable for automated manufacturing. Confirm that the selected stacking height matches the mechanical constraints of the target assembly. Ensure compatibility with mating sockets from the same M20 series family to maintain proper engagement depth and alignment.
Selection Notes
Select this component when a low-profile, single-row surface-mount header is required for high-density layouts. The 2.54 mm pitch offers standard spacing for general-purpose signals. Consider the available stacking heights to accommodate different board thicknesses or shield requirements without exceeding vertical space limitations.
Part Context
This part belongs to the Harwin M20 series, which provides a comprehensive range of surface-mount and through-hole connectors. The series supports various pin counts and row configurations, allowing designers to scale connectivity solutions while maintaining consistent mechanical and electrical characteristics across different product lines.
Replacement Considerations
Compatible mating sockets include M20-7880446. Verify that substitute parts maintain the same 2.54 mm pitch and surface-mount footprint to ensure mechanical fit and electrical continuity.
