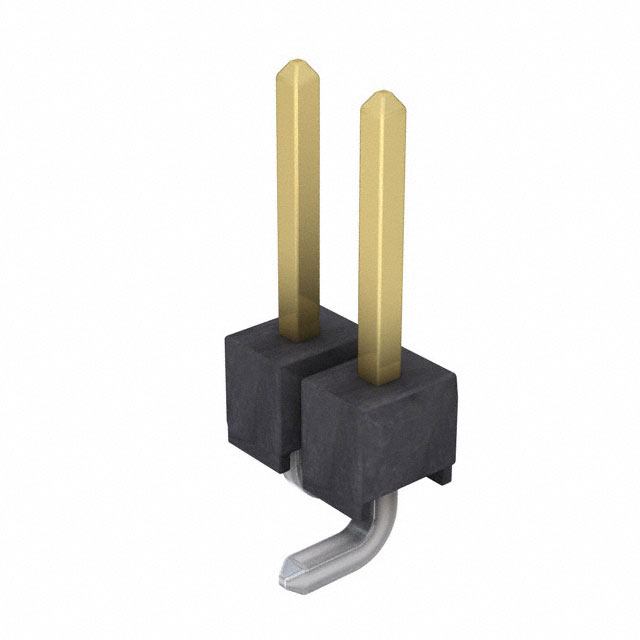

M20-8770242R

$0.66

Description：CONN HEADER SMD 2POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5f1744d4703f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-8770242R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 2POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-8770242R

Description：CONN HEADER SMD 2POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.228" (5.80mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-8770242R

M20-8770242R

Headers, Male Pins Overview

The Harwin M20-8770242R is a 2-position, single-row male pin header assembly designed for surface mount technology. It features a 2.54 mm pitch and vertical orientation. The connector utilizes brass contacts with gold plating and a nylon housing. Rated for 3 A current, it operates within a temperature range of -40°C to +105°C. The mating pin height is specified at 5.8 mm, facilitating board-to-board or wire-to-board connections via solder termination.

Headers, Male Pins Feature Summary

Single row vertical configuration for compact surface mount integration
Gold-plated brass contacts ensure reliable signal transmission
Nylon housing provides structural stability and insulation

Headers, Male Pins Applications

Board-to-board interconnects in consumer electronics
Wire-to-board connections in industrial control modules
Compact circuit board stacking applications

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' against official Harwin documentation to confirm reel packaging specifications. Ensure compatibility with automated pick-and-place equipment by checking component dimensions. Confirm RoHS compliance status through the manufacturer's latest declaration before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row SMT header is required for 2-contact interfaces. The 2.54 mm pitch aligns with standard PCB grid layouts. Consider the 5.8 mm mating height for clearance requirements. Verify that the 3 A current rating meets the application's electrical load demands without derating.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, which offers a comprehensive range of connectors for various mounting styles. The M20 series is known for its robust mechanical design and consistent performance across different environmental conditions. This specific model represents a basic two-contact variant suitable for simple signal or power distribution tasks.
