M20-8770246P

Headers, Male Pins Overview

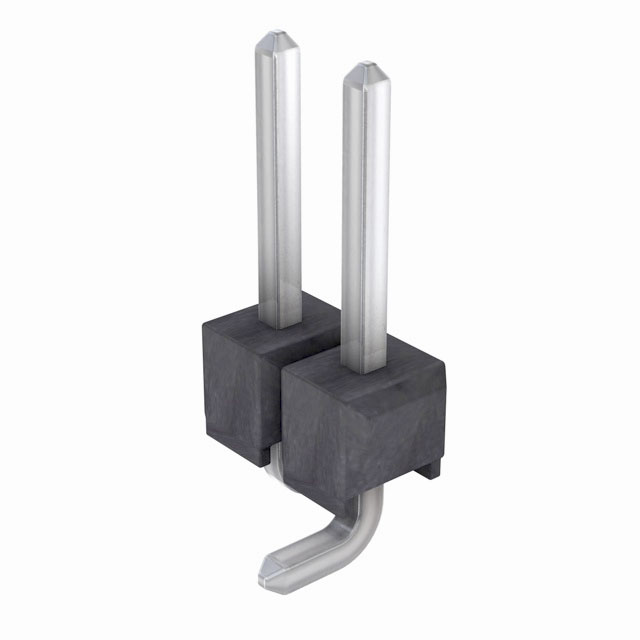

The M20-8770246P is a single-row, vertical surface-mount pin header from the Harwin M20 series. It features 2 positions with a 2.54 mm (0.1 in) pitch. The connector utilizes tin-plated contacts and is designed for through-hole solder termination. This component serves as a board-to-board or cable interconnection solution within the M20 family of rectangular connectors.

Headers, Male Pins Feature Summary

• Vertical surface-mount design for compact PCB integration
• Single-row configuration with standardized 2.54 mm spacing
• Tin-plated contact finish for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic assembly requiring low-profile headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'P' against the official Harwin datasheet to confirm packaging details and RoHS compliance status. Ensure the selected variant matches the required termination style and contact plating specifications for your manufacturing process before ordering.

Headers, Male Pins Selection Notes

Select this part for applications requiring a minimal footprint with vertical orientation. Confirm that the 2-position count meets circuit requirements. Verify compatibility with mating sockets from the same M20 series to ensure proper engagement height and mechanical stability.

Headers, Male Pins Part Context

This component belongs to the M20 series, a widely used line of rectangular connectors by Harwin Inc. The series offers various row counts, pitches, and mounting styles. The M20-8770246P specifically addresses needs for small-scale, high-density vertical connections on printed circuit boards.

Headers, Male Pins Replacement Considerations

Consult the official Harwin replacement guide for direct substitutes. Generic equivalents may differ in mating dimensions or locking mechanisms. Verify cross-compatibility with existing M20 series sockets to maintain system integrity.
