M20-8770342

Headers, Male Pins Overview

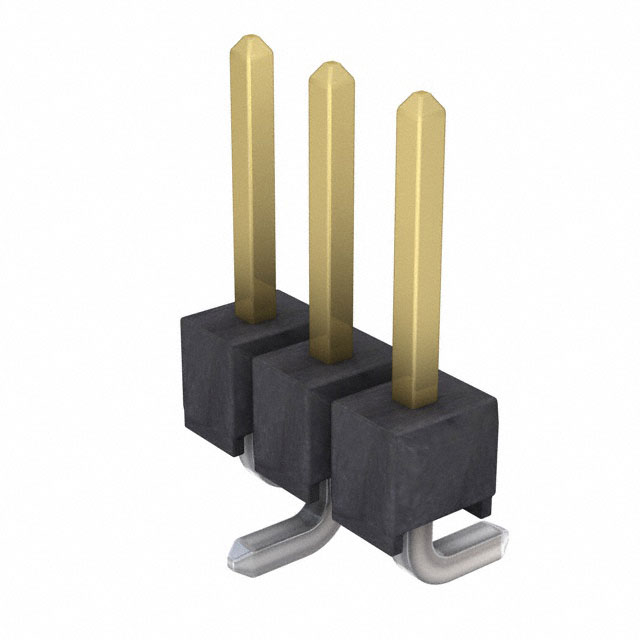

The M20-8770342 is a surface mount header from the Harwin M20 series, featuring 3 positions with a 2.54 mm pitch. It is a single-row, vertical male pin connector designed for board-to-board and wire-to-board applications. The unit utilizes gold-plated brass contacts and a nylon housing, supporting a current rating of 3A. Operating temperatures range from -40°C to 105°C, with a mating pin length of 5.8mm.

Headers, Male Pins Feature Summary

• Vertical surface mount design for direct PCB integration
• Gold-plated brass contacts ensure reliable signal transmission
• Nylon housing provides structural stability and insulation

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status via official documentation. Check for end-of-life notifications as availability may be limited. Ensure storage conditions maintain contact integrity prior to installation.

Headers, Male Pins Selection Notes

Select this model for compact vertical mounting requirements. Verify that the 2.54 mm pitch matches the target footprint. Ensure the 3A current rating meets circuit demands. Confirm compatibility with mating connectors requiring a 5.8mm pin length.

Headers, Male Pins Part Context

This component belongs to the M20 series of rectangular connectors by Harwin Inc. The series offers various position counts and configurations for diverse electronic applications. This specific part represents a low-profile solution for high-density layouts.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
