M20-8770442P

Headers, Male Pins Overview

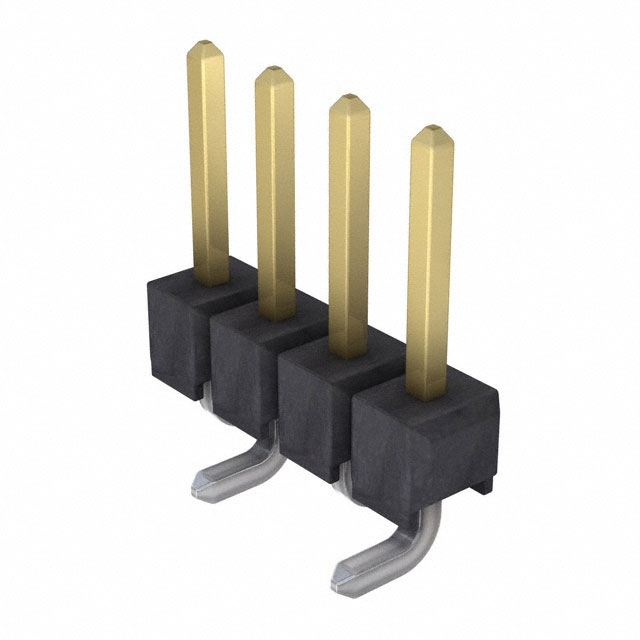

The M20-8770442P is a surface-mount header from the Harwin M20 series, featuring a 2.54 mm pitch and 4 positions in a single row. It utilizes gold-plated contacts with tin plating on the tail for soldering. The connector supports a rated current of 3A per contact and a voltage of 250V. Designed for board-to-board or cable applications, it operates within a temperature range of -40°C to 105°C. The housing is made of black polyamide (PA6T) with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Surface-mount design for automated assembly processes
• Gold-plated mating contacts ensure reliable signal transmission
• Polyamide insulation provides thermal stability and flame resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic circuit assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'P' against the manufacturer's datasheet to confirm packaging details and availability status. Ensure compatibility with mating sockets regarding pin length and insulation height. Cross-reference RoHS compliance documentation for regulatory requirements in target markets.

Headers, Male Pins Selection Notes

Select this component for low-pin-count applications requiring surface-mount convenience. Verify that the 2.54 mm pitch matches the PCB footprint. Confirm that the single-row configuration fits the spatial constraints of the design. Check mating partner specifications for compatible socket types.

Headers, Male Pins Part Context

This part belongs to the M20 series, known for high-density interconnects. It complements other M20 headers and sockets. The series offers various pin counts and configurations. It is designed for modern electronics manufacturing needs.

Headers, Male Pins Replacement Considerations

M20-8770442 is a similar variant. M20-8770442P may have different packaging. Verify mechanical dimensions before substitution.
