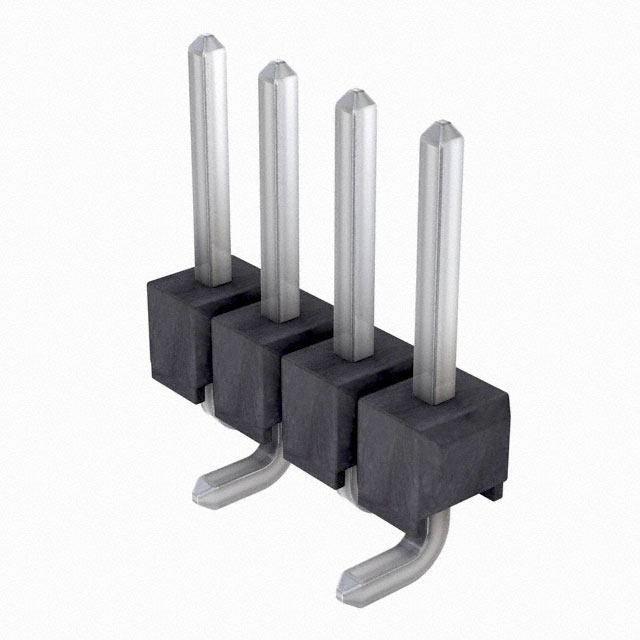

M20-8770446P

Description：CONN HEADER SMD 4POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Tube

SKU:0f6d3820a043 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-8770446P is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 4POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-8770446P

Description：CONN HEADER SMD 4POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.228" (5.80mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：Pick and Place
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-8770446P

M20-8770446P

Headers, Male Pins Overview

The M20-8770446P is a single-row male pin header from the Harwin M20 series, designed for surface mount applications. It features a 2.54 mm (0.100 inch) pitch and provides four positions for electrical connectivity. The connector utilizes brass contacts with gold plating to ensure reliable signal transmission and corrosion resistance. Constructed with a black nylon insulation body, it supports board-to-board or wire-to-board interconnections in compact electronic assemblies.

Headers, Male Pins Feature Summary

Surface mount design for automated PCB assembly
Gold-plated brass contacts for enhanced conductivity
Single-row configuration with 2.54 mm spacing

Headers, Male Pins Applications

Board-to-board interconnects
Wire-to-board connections
Compact electronic device assemblies

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'P' aligns with the required packaging format, as distributors may list this part under reel or cut-tape specifications. Confirm the exact contact count and row configuration against the schematic requirements before ordering. Ensure compatibility with standard surface mount reflow profiles during the procurement validation process.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for surface mounting. The 2.54 mm pitch offers broad compatibility with standard ribbon cables and mating connectors. Gold plating on brass contacts is suitable for general-purpose signals where moderate durability is needed. Consider the physical dimensions and thermal limits of the nylon housing for the operating environment.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, which focuses on high-density interconnect solutions. The series includes various configurations for through-hole and surface mount technologies. The M20-8770446P specifically addresses the need for reliable, space-efficient connections in modern electronics manufacturing.
