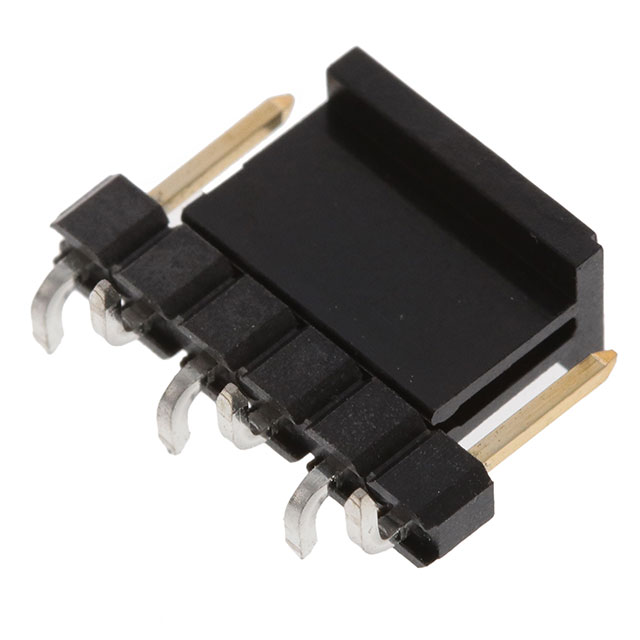

M20-8770642R

$0.66

Description：CONN HEADER SMD 6POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8fbfaf5ed599 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-8770642R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 6POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-8770642R

Description：CONN HEADER SMD 6POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.228" (5.80mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-8770642R

M20-8770642R

Headers, Male Pins Overview

The M20-8770642R is a single-row male pin header from the Harwin M20 series, designed for surface mount technology. It features a 2.54 mm pitch with six contacts arranged in a vertical orientation. The connector utilizes a tin-plated contact finish over a nickel barrier and is housed in a UL 94V-0 rated material. Key dimensions include a body width of 0.098 inch, depth of 0.163 inch, and length of 0.6 inch. It supports board-to-board and wire-to-board systems.

Headers, Male Pins Feature Summary

Single-row vertical configuration for compact surface mount integration
Gold-plated contact area ensuring reliable signal transmission
High-temperature resistant housing compliant with UL 94V-0 standards

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
Surface mount electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates reel packaging when sourcing. Confirm RoHS compliance status as listed in official documentation. Ensure the supplier provides traceable manufacturing data to match the specified tin-nickel barrier plating requirements for this component variant.

Headers, Male Pins Selection Notes

Select this part for applications requiring a low-profile, single-row vertical interface. The 2.54 mm pitch ensures compatibility with standard mating connectors. Consider the surface mount requirement and verify that the PCB layout accommodates the specified body dimensions and soldering profile.

Headers, Male Pins Part Context

This component belongs to the M20 series, which offers both single-row latching and double-row jackscrew fixing variants. The M20-8770642R specifically represents the single-row surface mount option. It is distinct from the M20-10 series housings and other pin counts within the same family.
