M20-8890445

Headers, Male Pins Overview

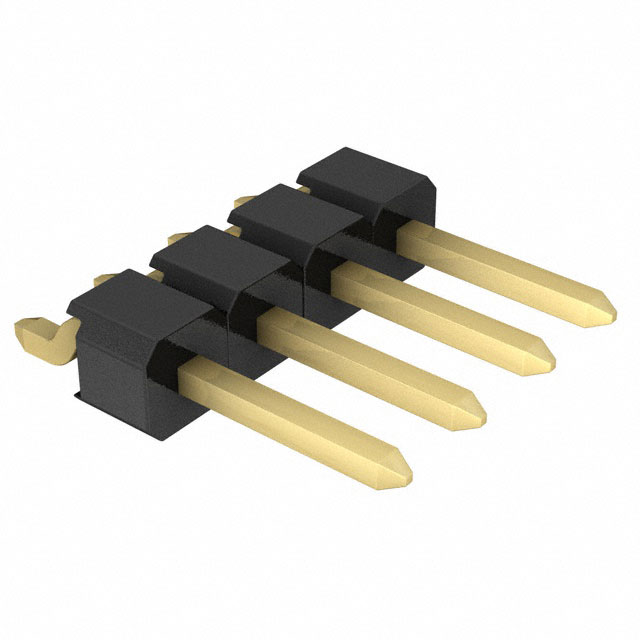

The M20-8890445 is a male pin header connector from the Harwin M20 series, designed for surface mount technology. It features a single row with four positions and a 2.54mm (0.100 inch) pitch. The connector utilizes a right-angle orientation to facilitate horizontal board connections. The housing profile height is specified at 2.5mm, while the mating pin length measures 6mm. Constructed with brass contacts and nylon insulation, it supports standard PCB assembly processes.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact horizontal integration
• Single row configuration with four contact positions
• Standard 2.54mm pitch for broad compatibility

Headers, Male Pins Applications

• Board-to-board interconnections requiring low profile
• Horizontal circuit board routing in dense assemblies
• Compact electronic device internal wiring

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the M20-8890445 to confirm RoHS compliance status and exact material composition details. Ensure that the surface mount footprint matches the manufacturer's recommended land pattern to guarantee reliable solder joint formation during automated assembly processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount solution is required for a four-channel connection. The 2.54mm pitch ensures compatibility with standard headers, while the 2.5mm housing height aids in minimizing overall assembly depth compared to through-hole alternatives.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, which offers various configurations including through-hole and surface mount options. The M20-8890445 specifically addresses the need for right-angle connectivity, distinguishing it from the vertical variants like the M20-998 series found in general product catalogs.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other single-row SMT right-angle headers such as M20-8890645 or M20-8890845, provided the position count aligns with the design requirements.
