M20-8900305

Headers, Male Pins Overview

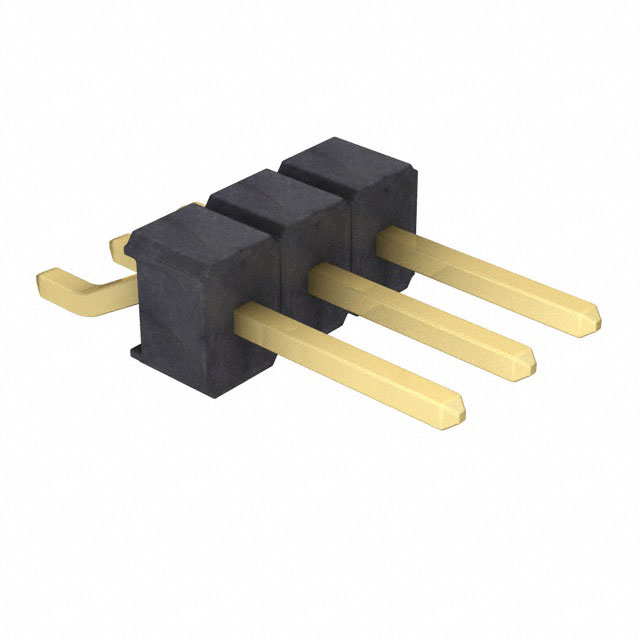

The M20-8900305 is a surface mount right-angle pin header assembly manufactured by Harwin Inc. It features a single row with three contacts and utilizes a 2.54mm (0.100 inch) pitch. The connector is designed for horizontal mounting on printed circuit boards, offering a housing profile height of 3.46mm and a mating pin length of 6mm. This component serves as a male plug interface for board-to-board connections.

Headers, Male Pins Feature Summary

• Single row right-angle configuration for compact horizontal PCB integration
• Surface mount technology design for automated assembly processes
• Gold-plated contacts to ensure reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Compact consumer electronics requiring low-profile headers
• Industrial control modules with space constraints

Headers, Male Pins Procurement Notes

Verify the specific datasheet version when sourcing this component to confirm contact plating thickness and material specifications. Ensure that the surface mount footprint matches the target PCB design guidelines. Cross-reference the part number against official Harwin documentation to distinguish between crimp housing variants and SMT pin header assemblies.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for dense circuit layouts. The 2.54mm pitch ensures compatibility with standard wire and cable harnesses. Consider the 3.46mm housing height to verify clearance within the final enclosure design before finalizing the bill of materials.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, which specializes in high-density interconnect solutions. The series offers various configurations including vertical and right-angle options. The M20-8900305 specifically addresses applications needing robust surface mount connectivity with precise alignment capabilities.

Headers, Male Pins Replacement Considerations

Consult official Harwin substitution guides for compatible alternatives. Verify mechanical dimensions and electrical ratings before replacing with generic equivalents.
