M20-8910205

Headers, Male Pins Overview

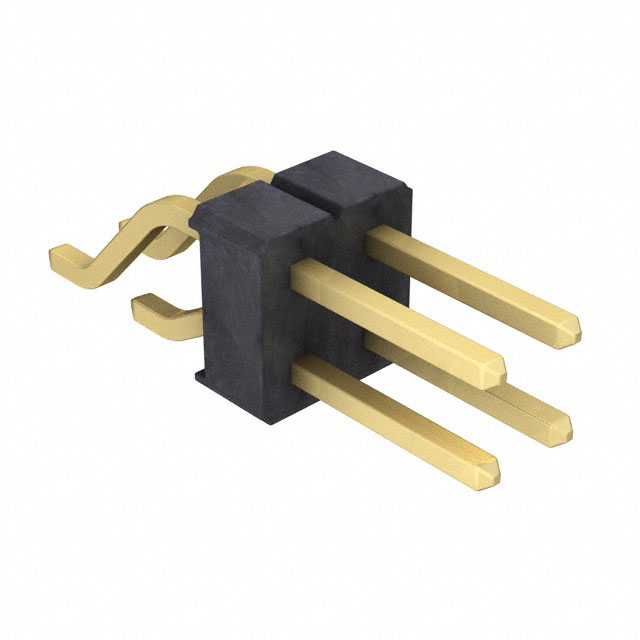

The M20-8910205 is a Harwin Inc. connector belonging to the M20 series, classified as a horizontal surface mount header with wire housing capabilities. It features a 2+2 pin configuration arranged in a dual in-line (DIL) format. The component utilizes gold-plated contacts for reliable signal transmission and is designed for through-board mounting via surface mount technology.

Headers, Male Pins Feature Summary

• Horizontal orientation design facilitates compact board layout integration
• Gold contact plating ensures durable electrical connectivity
• Dual in-line structure supports multi-circuit applications

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board signal routing
• Compact electronic module assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin counts and plating specifications. Ensure compatibility with automated surface mount placement equipment. Cross-reference the datasheet for reflow soldering profiles and thermal handling limits before procurement.

Headers, Male Pins Selection Notes

Select this model when horizontal low-profile headers are required for space-constrained designs. Verify that the mating wire gauge and housing dimensions align with system requirements. Confirm that the DIL spacing matches the target PCB footprint and that gold plating meets corrosion resistance standards.

Headers, Male Pins Part Context

This part belongs to the M20 series of connectors from Harwin, which offers various header configurations. The M20-8910205 specifically addresses needs for horizontal SMT headers with wire housing options, differing from vertical or straight pin strip variants within the same product family.

Headers, Male Pins Replacement Considerations

Consult Harwin's official cross-reference guides for direct substitutes. Verify mechanical dimensions and electrical ratings match exactly before considering alternative manufacturers.
