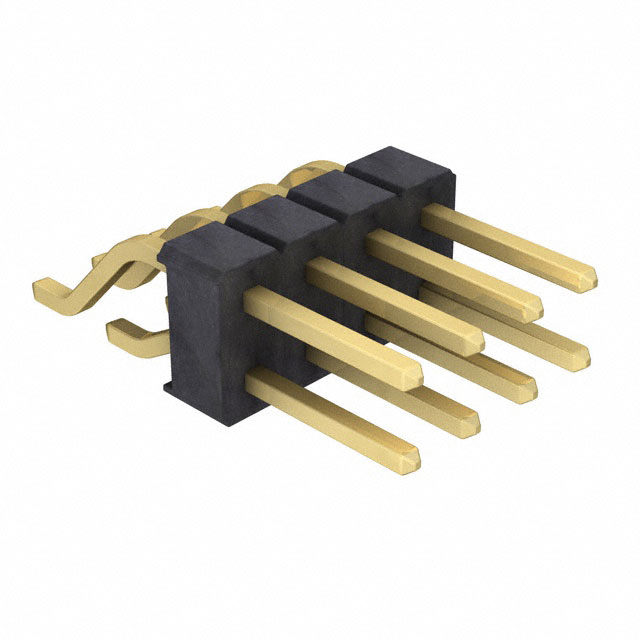

M20-8910405

Description：CONN HEADER SMD R/A 8POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk

SKU:69106531f747 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-8910405 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD R/A 8POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-8910405

Description：CONN HEADER SMD R/A 8POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.236" (6.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.197" (5.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-8910405

M20-8910405

Headers, Male Pins Overview

The M20-8910405 is a surface mount header connector from the Harwin M20 series, featuring an angled configuration with eight positions. It utilizes a 2.54 mm pitch and employs brass contacts finished with gold plating for mating surfaces. The housing is constructed from polyamide (PA6T) or nylon 6T, rated UL94 V-0 for flammability. Designed for board-to-board or cable applications, it supports a working temperature range of -40°C to +105°C and offers a stacking height of 11.53 mm.

Headers, Male Pins Feature Summary

Surface mount installation with right-angle orientation for compact PCB layouts
Gold-plated brass contacts ensure reliable electrical performance
High-temperature resistant polyamide insulation material

Headers, Male Pins Applications

Board-to-board interconnections in dense electronic assemblies
Cable-to-board connections requiring angled routing
Industrial control modules with space constraints

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm the right-angle surface mount configuration. Ensure compatibility with automated pick-and-place equipment due to the SMD package style. Cross-reference the contact finish and insulation material specifications with the latest datasheet to match design requirements.

Headers, Male Pins Selection Notes

Select this component when a low-profile, angled surface mount solution is required for eight-channel signal transmission. The 2.54 mm pitch ensures compatibility with standard M20 series mating connectors. Consider the 11.53 mm stacking height for clearance analysis within the final enclosure design.

Headers, Male Pins Part Context

This part belongs to the M20 series, a family of industrial standard connectors known for their robust construction and high density. The series includes various configurations for through-hole and surface mount applications, catering to diverse board layout needs in demanding environments.
