M20-8911105

Headers, Male Pins Overview

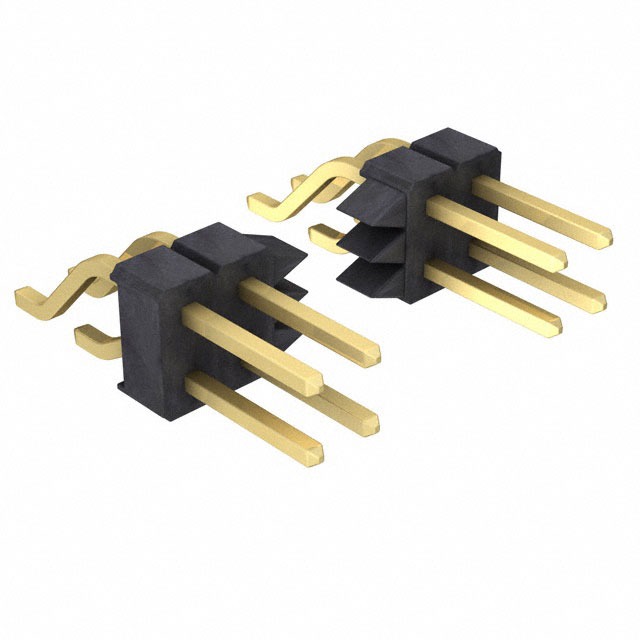

The Harwin M20-8911105 is a surface mount header connector from the M20 series. It features a 2.54 mm pitch and provides 22 positions in a single row configuration. The connector utilizes right-angle pin contacts designed for board-to-board or cable applications. Constructed with brass contacts and a nylon housing, it supports through-hole termination methods for reliable PCB attachment. This component is engineered for high-density interconnect solutions requiring robust mechanical stability and consistent electrical performance in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Surface mount design facilitates automated assembly processes
• Right-angle orientation optimizes spatial efficiency on printed circuit boards
• Single row layout simplifies routing and connection management

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable to board connections
• High-density electronic module integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct contact plating and housing material specifications. Confirm that the surface mount footprint matches your PCB design requirements. Check for any RoHS compliance documentation if required by your manufacturing standards. Ensure the right-angle orientation aligns with your mechanical constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when surface mount technology is preferred over through-hole for space-constrained designs. The right-angle profile allows for vertical stacking or side-by-side mounting configurations. Consider the 2.54 mm pitch compatibility with existing mating connectors. Evaluate the single-row limitation against total I/O requirements to determine if multiple units are necessary for the application.

Headers, Male Pins Part Context

This component belongs to the Harwin M20 series, which offers a range of rectangular connectors for various interconnect needs. The series includes both through-hole and surface mount options with different row counts and pitches. The M20-8911105 specifically addresses the need for compact, right-angle surface mount headers in modern electronics manufacturing environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
