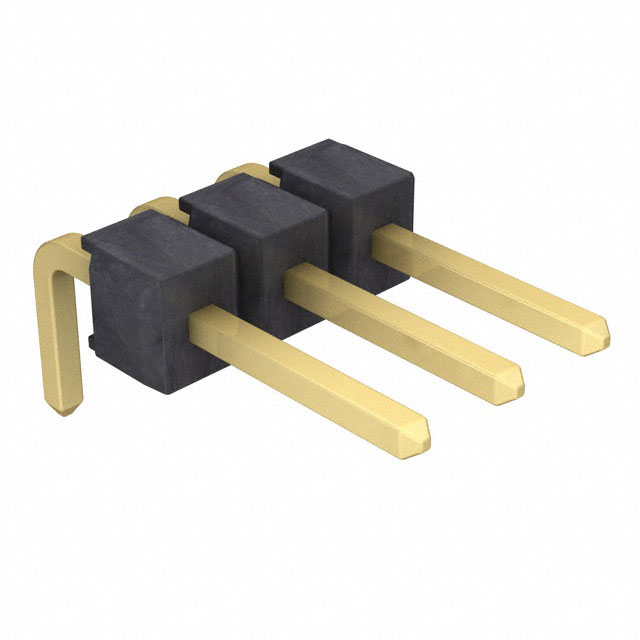

M20-9710345

Description：CONN HEADER R/A 3POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk

SKU:8be51237f8dc Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-9710345 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 3POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-9710345

Description：CONN HEADER R/A 3POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.276" (7.00mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-9710345

M20-9710345

Headers, Male Pins Overview

The Harwin M20-9710345 is a vertical pin header from the M20 series, featuring a 2.54 mm (0.1 in) pitch and three positions. It utilizes brass contacts with gold plating for reliable signal transmission. Designed for through-hole mounting, this single-row connector supports board-to-board or wire-to-board applications. The unit operates within a temperature range of -40°C to +105°C and carries a current rating of 3A per contact. The housing is constructed from black nylon, ensuring mechanical stability and compliance with UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Vertical orientation design facilitates standard PCB layout integration
Gold-plated brass contacts ensure durable electrical connectivity
Single-row configuration allows for compact circuit board spacing

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
General electronic assembly requiring through-hole headers

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact plating thickness and material specifications. Ensure that the selected variant matches the required operating temperature range and current carrying capacity for the target application environment. Cross-reference the datasheet for any recent updates regarding RoHS compliance status or packaging changes before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with gold contacts is required for low-current signal applications. The 2.54 mm pitch is standard for general-purpose electronics. Consider the through-hole mounting style for robust mechanical attachment. Evaluate the 3A rating against the total load requirements of the connected circuitry to ensure safe operation under all expected conditions.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, a widely used family of rectangular connectors known for their versatility in various industrial and consumer electronics. The M20 series offers multiple configurations including different row counts, orientations, and contact materials. This specific model represents a standard vertical pin header option within that extensive portfolio.
